PROPOSAL

 We are pleased to offer, subject to prior sale and our “Standard Terms and Conditions of Sales”, for immediate acceptance, the following:

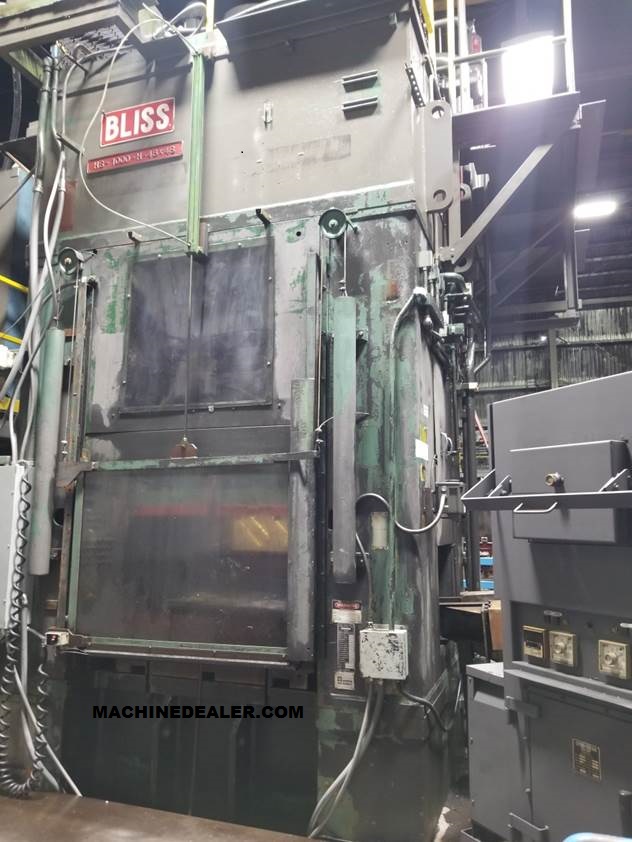

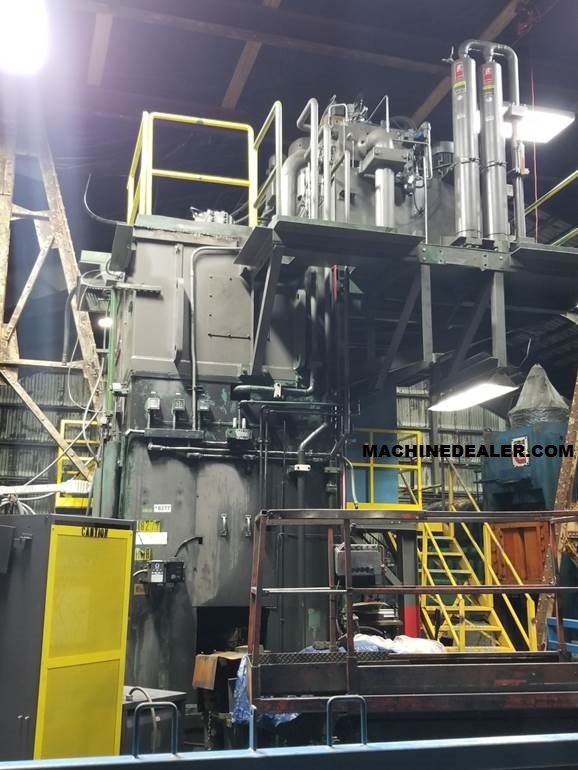

TWO PREOWNED BLISS HYDRO-DYNAMIC 1,000 TON HYDRAULIC FORGING PRESS CELLS  MODEL HS1000-H-48-48, S/N 30323

SPECIFICATIONS:

Capacity @ 4500 PSI…………………………………….………….…….1,000 Tons

Pull Back Capacity……………………………………………………………..75 Tons

Daylight ……………………………………………………………………………………… 40”

Stroke ……………………………………………………… …………………………….24”

Shut Height…………………………………………………………………..………16”

Approach Spee……………………………………………………………….1000 IPM

Press Speed @ 1,000 Tons………………………………………………….500 IPM

Ram Return Speed…………………………………………………………..1000 IPM

Bed Size L to R & F to B………………………………………………………48” x 48”

Ejector Capacity…………………………………………………………………15 Tons

Ejector Speed…………………………………………………………………..250 IPM

Pump Capacity……………………………………………………………….…75 GPM

Motor………………………………………………………………..200 HP, 1200 RPM

Approximate Weight……………………………………………………………… 149,000 lbs

Approximate Height Above Floor………………………………………………..21’ 6”

EQUIPPED WITH:

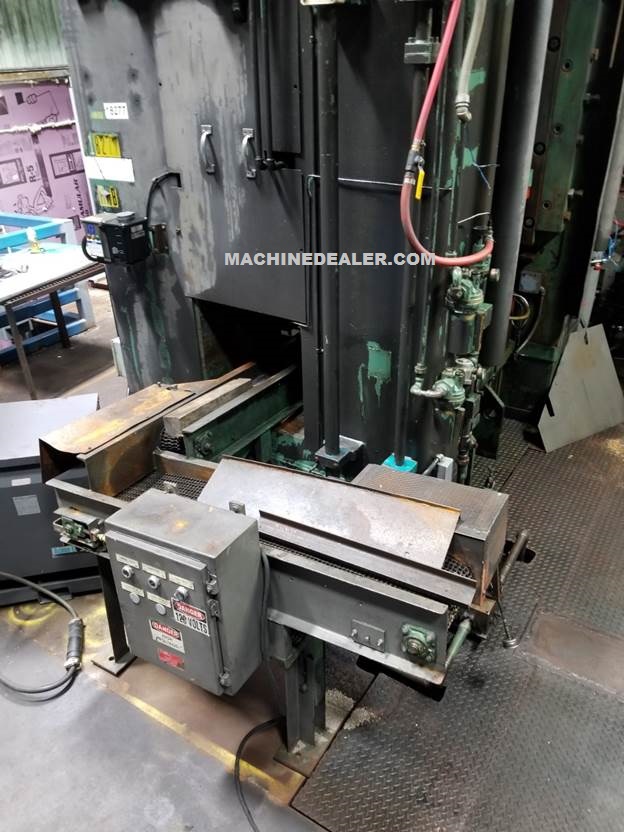

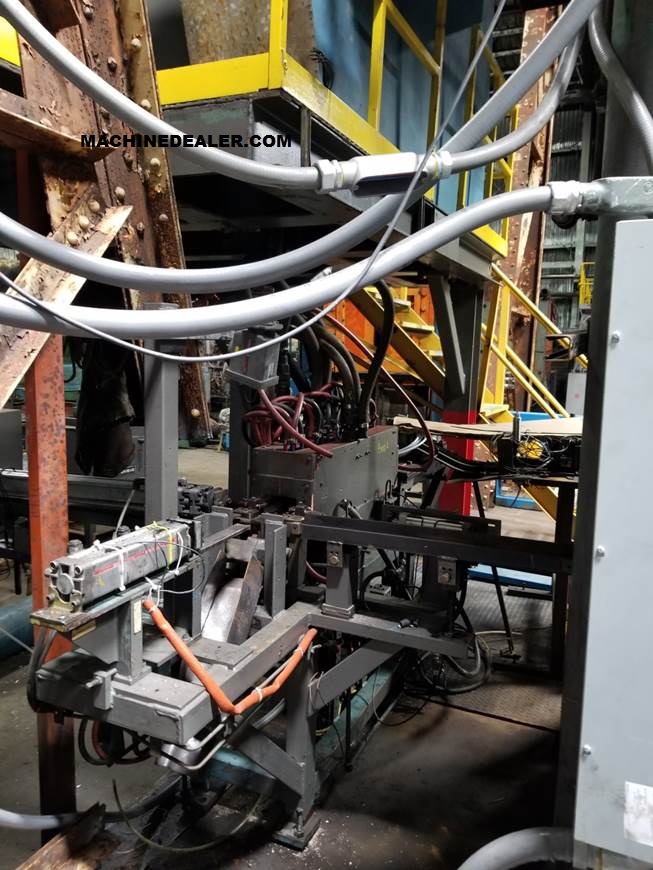

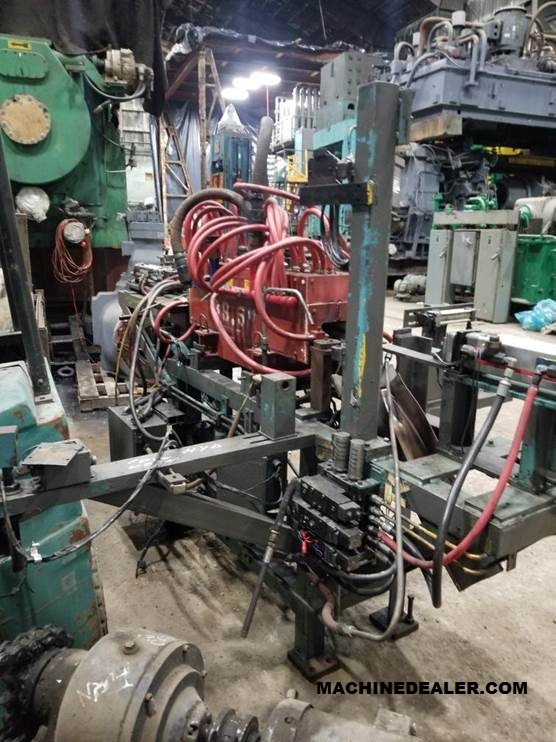

FeedAll Automation Feed Systems

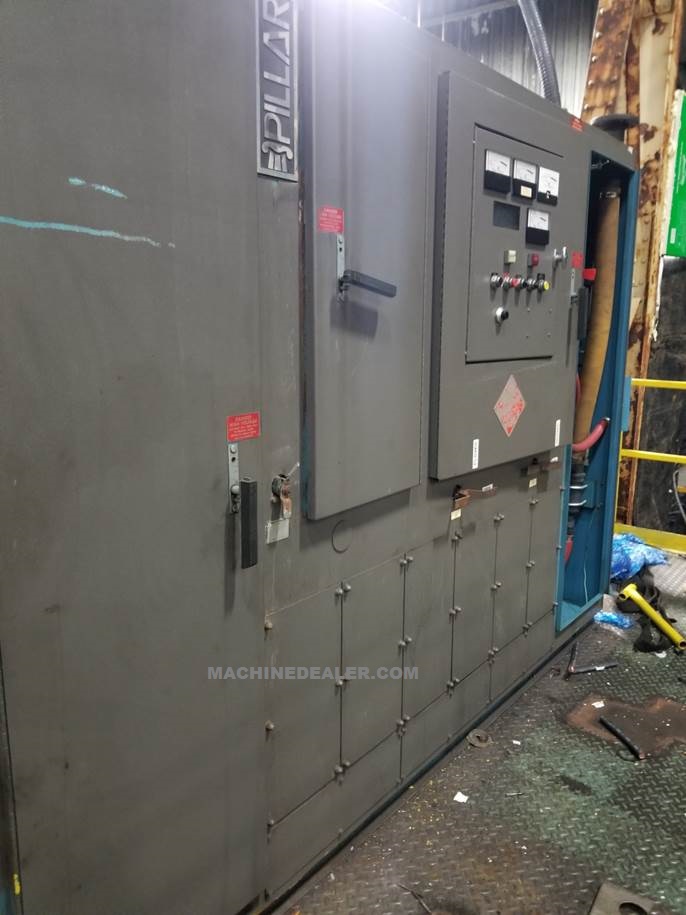

Piller Induction Heaters 400 KW Model AB555-4006/MK8 (2)

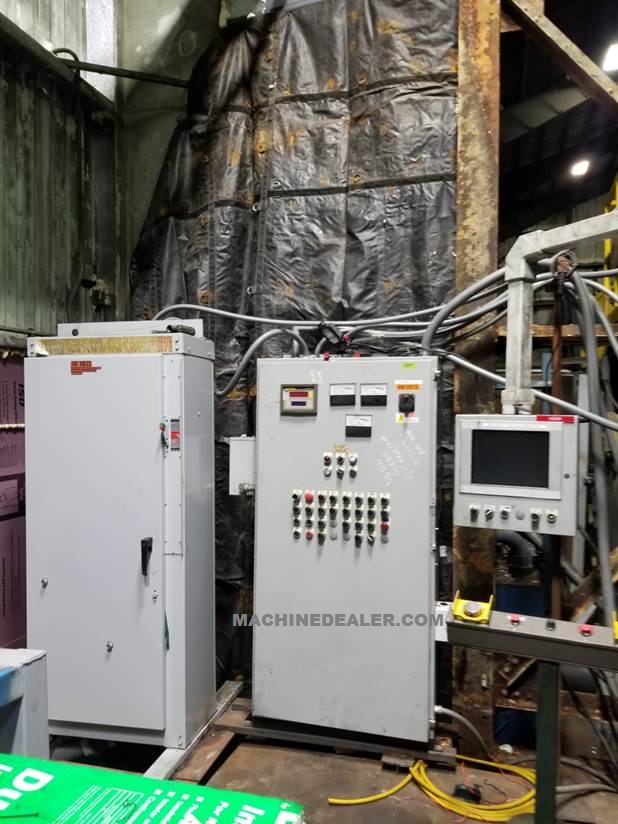

Updated Controls in 2013 with Touch Screen Monitors

Tooling and Dies for Forging and Trimming Turbine Blades

Manuals and Documentation

In Process Gageing

Condition: Very Good-Very Well Maintained Presses. One Press is Under Power.

Location: Michigan – In Storage

These two press cells were last used by a well know US company in production of forged turbine blades. The blades were used in both aerospace and in gas turbine generator power plants. The blades were both forged and trimmed in the presses. Dies and tooling for several families of turbine blades are included with the cells. Each cell only required one person for operation. Heated material was feed to the press and forged and trimmed blades were conveyed away from the cell.

INVESTMENT……AS INSPECTED/TWO FORGING CELLS.…………..$POR

Stk#3017CVG

Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales” with exception made only by Mauldin Machine Inc and all parties involved in the transaction.
