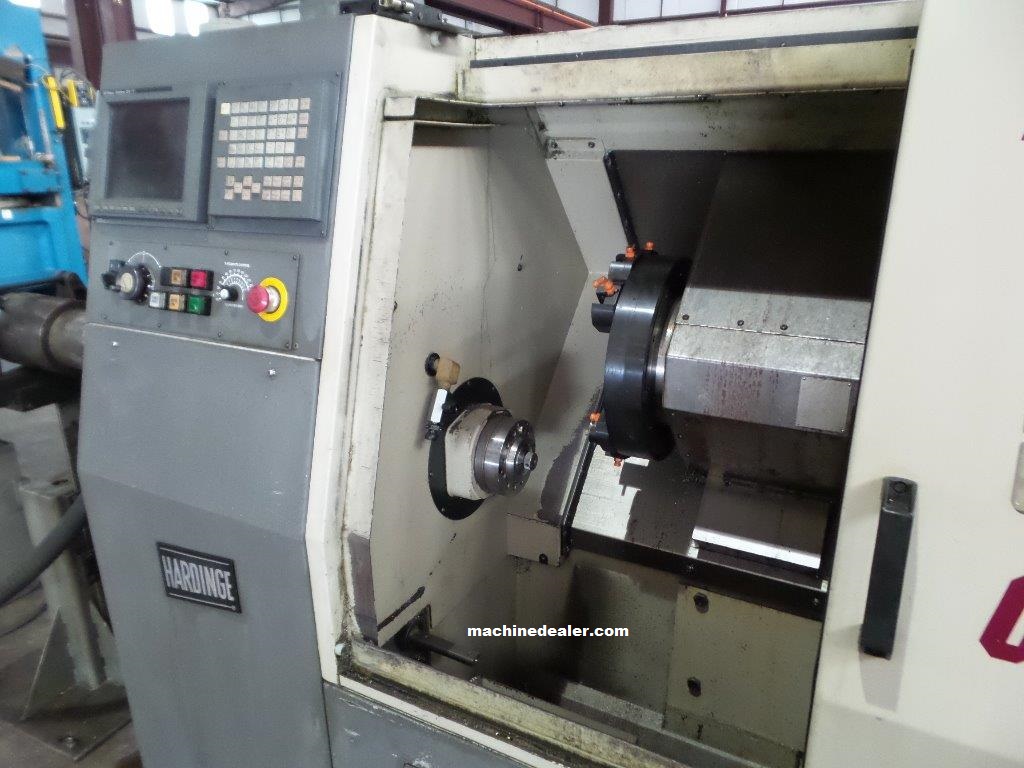

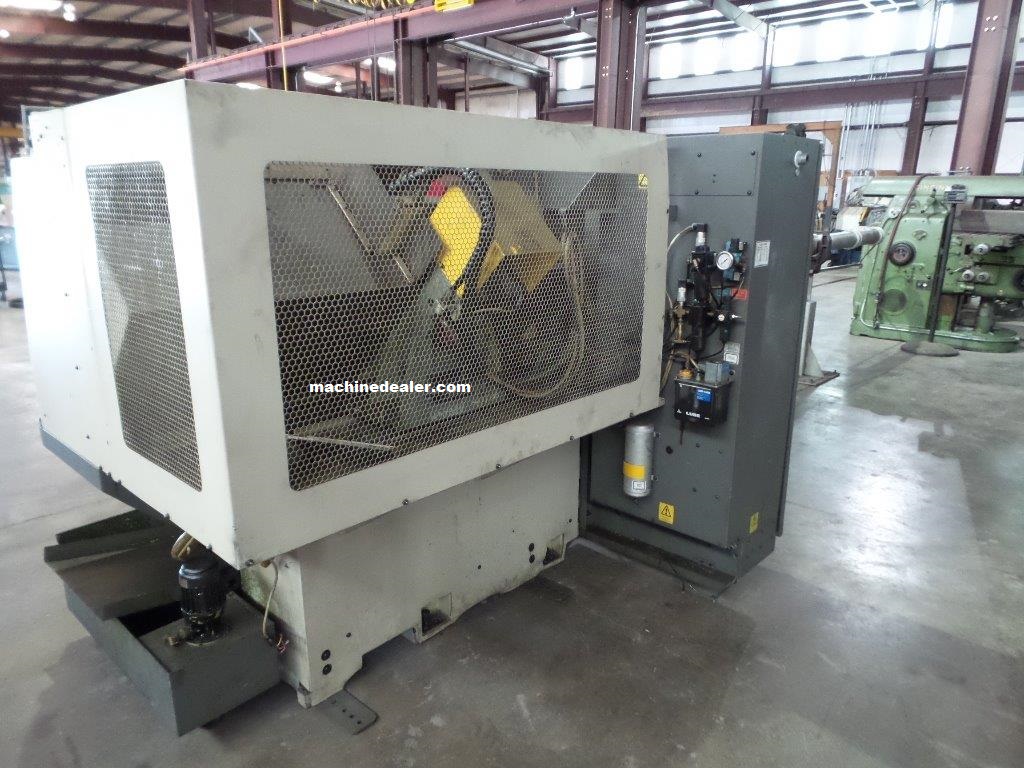

ONE PREOWNED HARDINGE COBRA 42 MODEL LLC, CNC LATHE,

S/N C-1083, NEW 1998

SPECIFICATIONS:

Number of Controlled Axis…………………………………………………… 2

Swing Over Saddle…………………………………………………………….. 15.75

Chuck Diameter………………………………………………………………… 10”

Maximum Turning Diameter…………………………………………………. 7.75”

Maximum Turning Length……………………………………………………. 13.9”
Spindle Nose…………………………………………………………………….. A2-15

Spindle Bar Diameter………………………………………………………….. 1.65”

Spindle Speed Ranges……………………………………………………….. 5000 rpm

X Axis Travel…………………………………………………………………….. 17.7”

Z Axis Travel…………………………………………………………………….. 14”

Rapid Traverse X-Y……………………………………………………………. 400-630 IPM

Turret……………………………………………………………………………. 12 Station VDI

Main Spindle Motor……………………………………………………………. 7.5 hp

Floor Space w/o Barfeed…………………………………………………….. 86” x 67”

Weight…………………………………………………………………………….. 7000 lbs

EQUIPPED WITH:

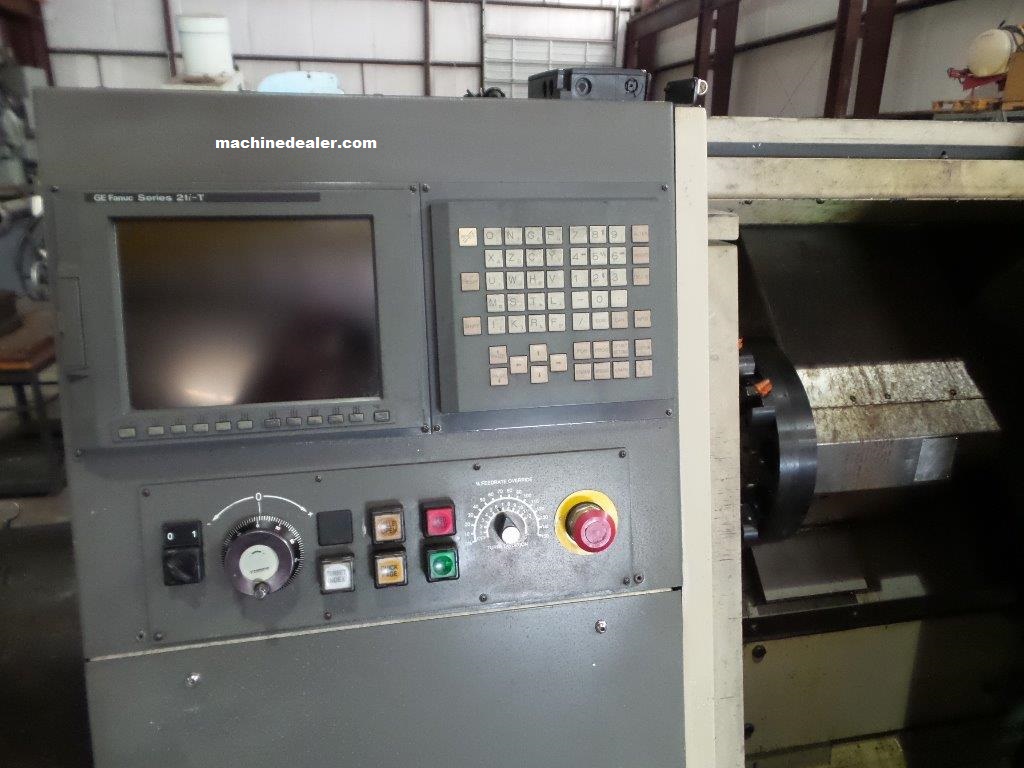

GE Fanuc 21i-T Control

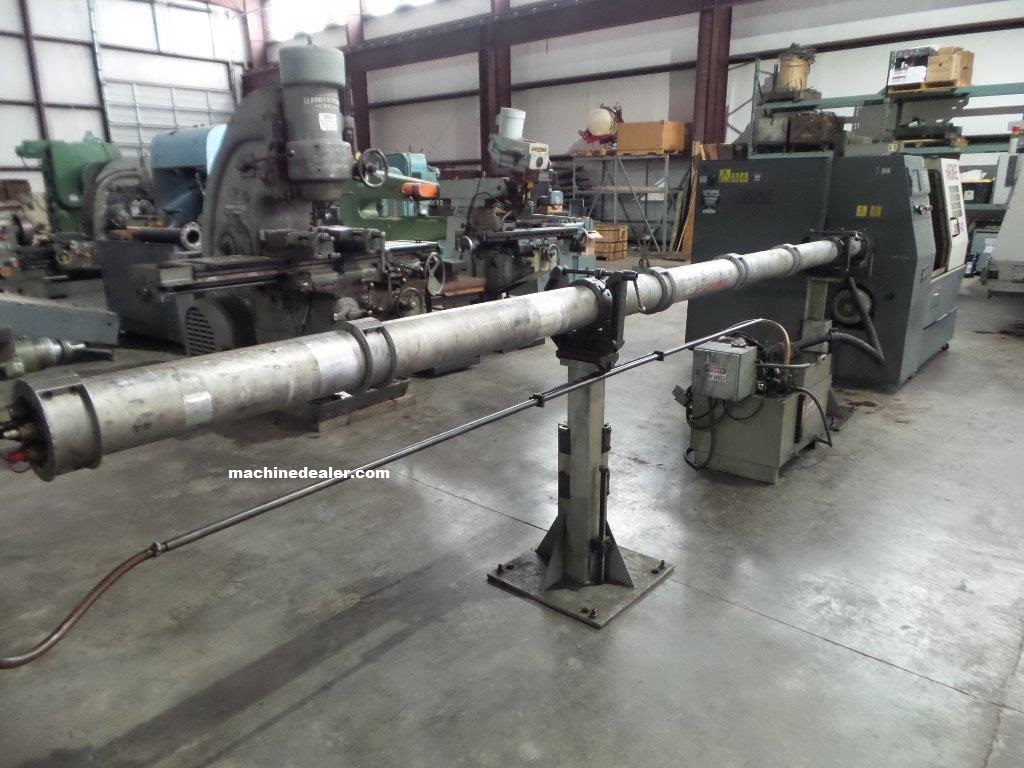

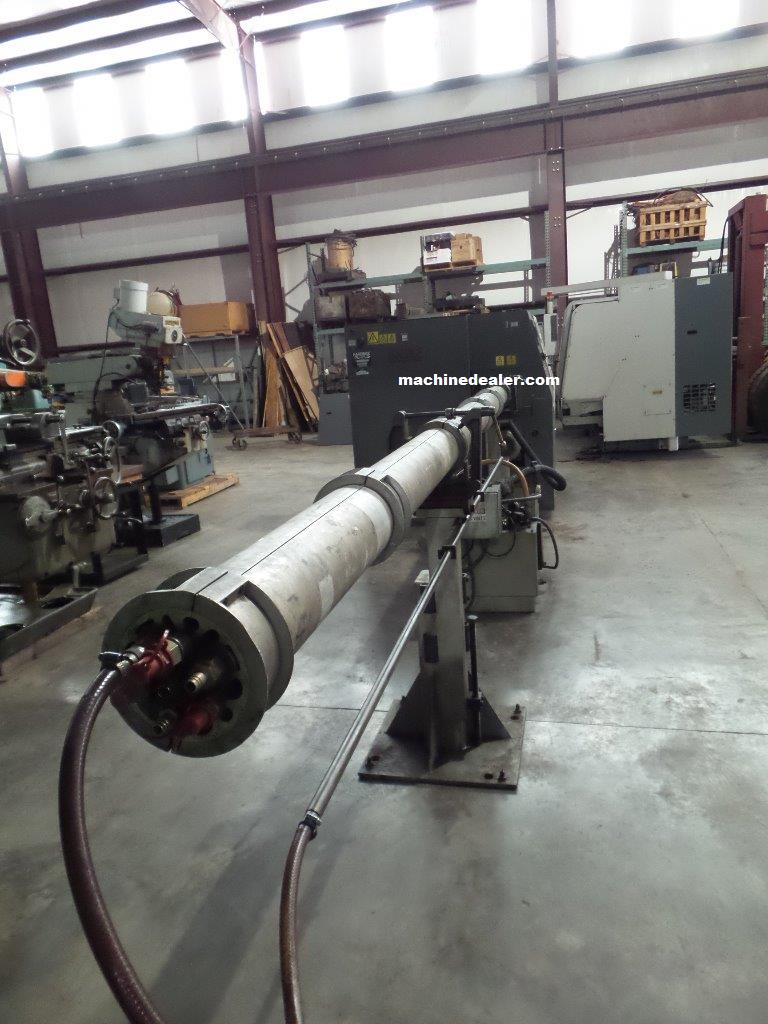

LNS Hydrobar Feed System

16C Collet Chuck

Manuals

Standard Coolant System

Tool Holders

Wired for 220 Volts, 3ph

CONDITION: Good. Just removed from service

Stk#2854C
