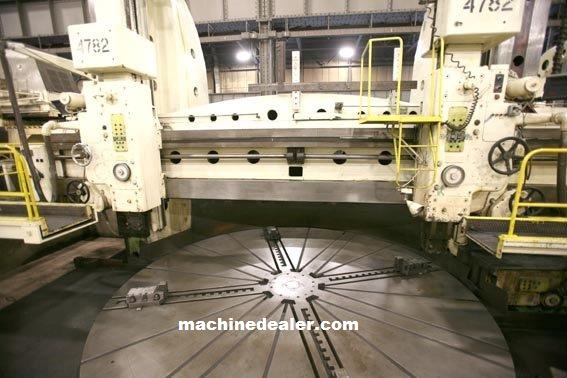

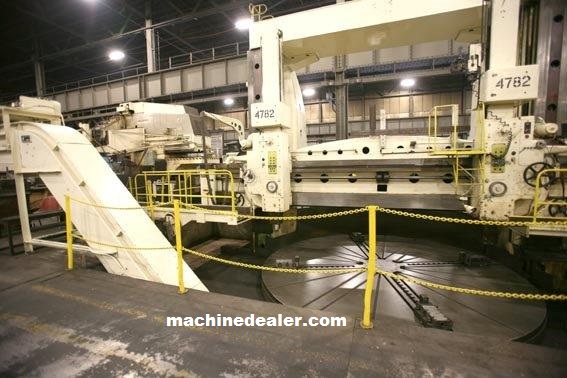

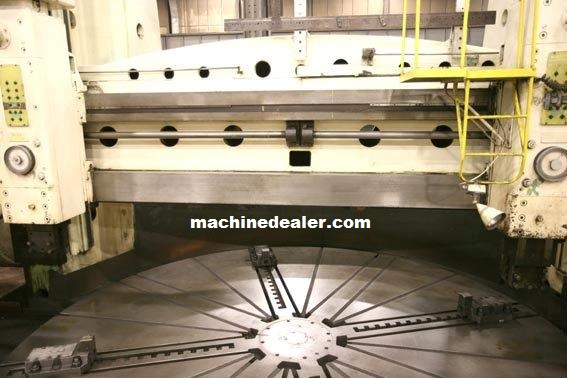

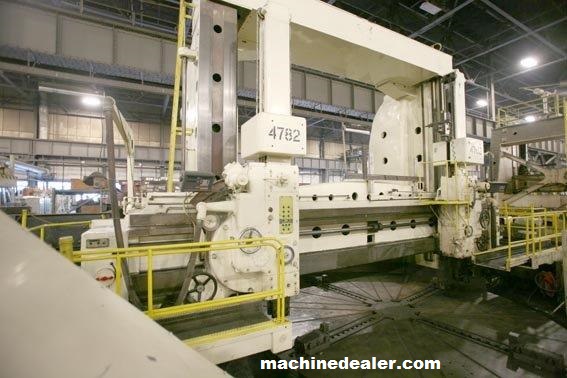

One Preowned SKODA SK-50A Vertical Boring Mill. Built 1972

Technical Specifications:

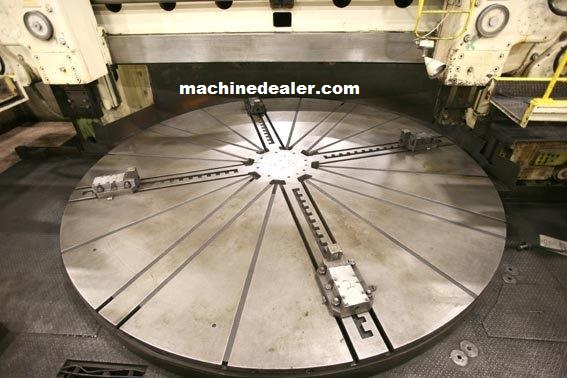

Table Diameter ……………………………………….4,750 mm
Table Weight Capacity…………………………………45 Tons
Table Motor, GE Variable Speed Drive…………….80 kW
Table Speeds (Inf. Variable)…………………0.33 – 32.8 RPM

Max Turning Diameter-Rams……………………..5,180 mm
Distance between the columns…………………..5.200 mm
Max Height Under Cross Rail ……………………..3,260 mm
Max height under tool …………………………… 3,050 mm
Left Ram Vertical Travel…………………………. … 1,400 mm
Left Ram Horizontal Travel………………………….2,960 mm
Right Ram Vertical Travel…………………………….1,400 mm
Right Ram Horizontal Travel…………………………2,960 mm
Vertical Ram Swivel …………………………….+/- 30 to 45 Degrees
Feeds (15) ………………………………………………0.005 – 11 mm/rev

Dimensions:
Front to back ……………………………….8,370 mm
Left to right…………………………………12,600 mm
Height …………………………………………9,890 mm
Machine Weight ……………………………..134 Tons

Equipped with:
Two Swiveling Ram Heads                                      Conical Turning
Side Head                                                                    Constant Surface Cutting Speed
2-Axis Newall DP7 Digital Readout System        Hydrostatic Table Bearings

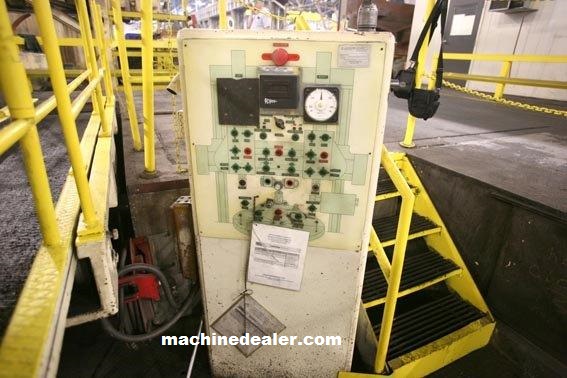

Threading Attachment Inch/Metric                     Pendant Control
Electronic Tracer                                                      Chip Conveyor

Under power in Northeast US and is in excellent condition.
Stk#2721
