15″ x 42″ LeBlond Regal Engine Lathe

15” x 42” LeBLOND Lathe, Mdl Dual Drive, 10” over cross slide, 28 to 1800 RPM, 3&4 jaw chucks, steady rest, coolant. Stk#2469C

Contact An Agent

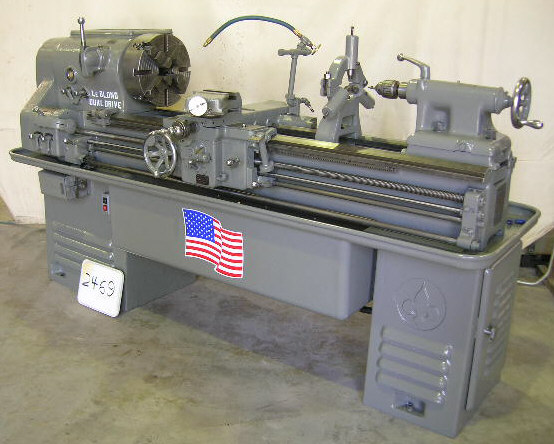

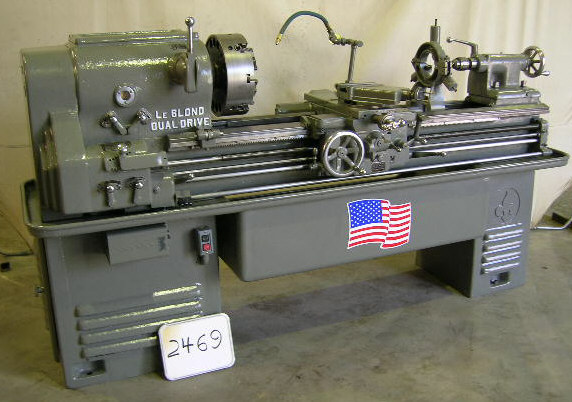

ONE PREOWNED 15′” X 42″ LeBLOND REGAL ENGINE LATHE,

DUALDRIVE HEADSTOCK, S/N HC408, NEW IN 1950’s

SPECIFICATIONS:

Actual Swing Over Ways……………………………………………………………… 15″

Actual Swing Over Cross Slide………………………………………………………. 10″

Distance Between Centers……………………………………………………………. 42″

Spindle Speed Range……………………………………………………….. 28-1800 RPM

Number of Spindle Speeds…………………………………………………………… 12

Hole Through Spindle………………………………………………………………….. 1 ½“

Spindle Nose……………………………………………………………………………… L-0

Thread Range…………………………… (English)…………………………….. 4-128 TPI

Feed Range…………………………………………………………….. 0.0008” to .028 IPR

Number of Feed Range………………………………………………………………….. 48

Taper in Tailstock…………………………………………………………………. #4 Morse

Motor……………………………………………………………………….. 3HP, 220/440 V

Weight……………………………. (Approximate)………………………………….. 4,500 Lbs.



ACCESSORIES:

10″ 3-Jaw Chuck

12″ 4-Jaw Steel Bodied Chuck

4″ Capacity Steady Rest

Coolant System and Chip Pan

Micrometer Carriage Stop



Condition:  Fair



Stk#2469C
