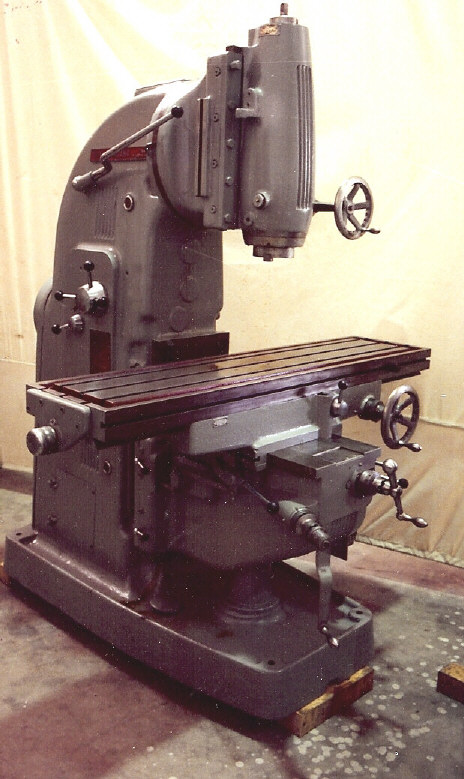

Dimco-Milano Vertical Milling Machine, Model AV-3, S/N 26249
Specifications:
Working Surface…………………………………………………………………………. 59″ x 14″
T-Slots, Number and Size………………………………………………………….. 3 x 13/16″
Distance Between T-Slots…………………………………………………………………. 3¾”
Longitudinal Travel………………………………………………………………………….. 40″
Cross Travel……………………………………………………………………………………. 14″
Centerline, Spindle to Top of Table:
Maximum……………………………………………………………………. 18″
Minimum……………………………………………………………………….. 0″
Vertical Head Travel by Hand……………………………………………………………… 4″
Swivel Head in Both Directions………………………………………………….. 45 Degrees
Standard American Taper Spindle…………………………………………………….. #50
Number of Spindle Speeds………………………………………………………………. 12
Spindle Speed Range…………………………………………………….. 16 to 650 RPM
Number of Feeds…………………………………………………………………………….. 12
Longitudinal Feeds, Minimum and Maximum…………………………….. 7/16″ – 14″
Cross Feeds, Minimum and Maximum………………………………………. 7/16″ – 14″
Vertical Feeds, Minimum and Maximum…………………………………… 5/16″ – 10″
Power Rapid Traverse:
Longitudinal……………………………………………………………. 100″ IPM
Cross………………………………………………………………………. 100″ IPM
Vertical…………………………………………………………………….. 50″ IPM
Spindle Driven Motor………………………………………………………………………… 7 HP
Net Weight……………………….. (Approximate)………………………………. 6,000 Lbs.
Stk#2053
