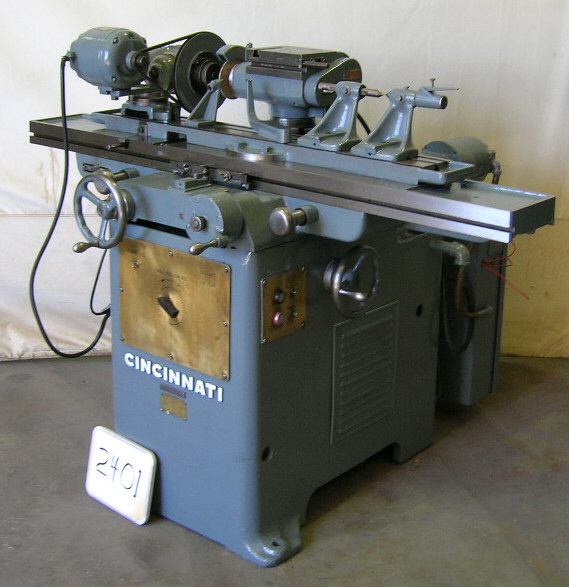

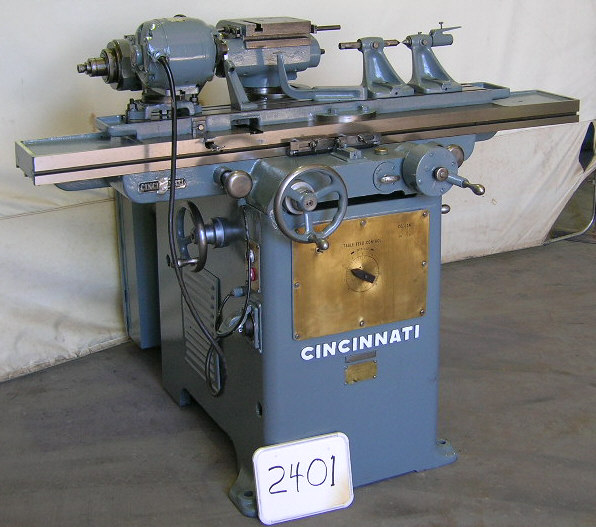

#2 Cincinnati Milacron Universal Tool & Cutter Grinder,
Model 2, Series LL, S/N 1D2T5D-297, New in 1956,
with Power Table Traverse
SPECIFICATIONS:
Swing Over Table, Maximum……………………………………………………… 10″
Work Length Maximum Capacity:
Between Tailstock Centers………………………………………………….. 36″
Between Workhead and Tailstock……………………………………….. 30″
Table Longitudinal Travel………………………………………………………………… 24″
Table Cross Travel……………………………………………………………………………. 8″
Table Working Surface……………. (W x L)…………………………………….. 5.25″ x 44″
Table Swivels……………………………………………………………………………….. 180°
Grinding Wheelhead:
Vertical Travel…………………………………………………………….. 10.5″
Swivel……………………………………………………………………….. 360˚
Spindle RPM……………………………………………………….. 3890/6530
Wheelhead Motor, Horsepower………………………………………………………. ¾ HP
Electrical System…………………………………………………………………….. 440/3/60
Floor Space Required……………………. (W x D)………………………………. 5′ 9″ x 4′ 9″
Overall Height……………………………………………………………………………………… 5′
Weight……………………………… (Approximate)……………………………….. 2,250 Lbs.
CONDITION: Appears to be in Very Good Condition
EQUIPPED WITH:
Powered Table Traverse
Swiveling Wheelhead
Powered Universal Workhead
Misc. Work Rest & Finger
Stk#2401
