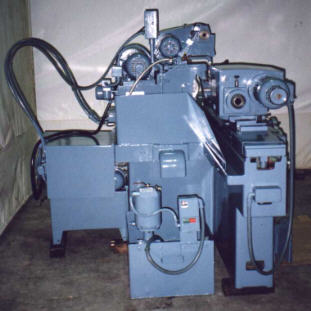

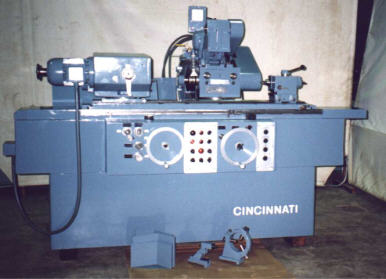

10″ X 30″ Cincinnati  Universal Cylindrical Grinder, with Drop-Down

Internal Grinding Attachment, Model # R-75, S/N 27121, New in 1973

SPECIFICATIONS:

Swing Over Table………………………………………………………………………… 10″

Distance Between Centers…………………………………………………………… 30″

Maximum Weight of Workpiece…………………………………………………….. 165 Lbs.

Table Traverse Speed………………………………………………………. 2 to 240 IPM

Table Traverse of Handwheel Revolution……………………………………….. 1″ to 5″

Maximum Table Swivel……………………………………………………………. 10 Degrees

Headstock Speeds……………………………………………………………… 45 to 400 RPM

Spindle Hole………………………………………………………………………………… 1½”

Jarno Center Taper………………………………………………………………………. # 8

Table Swivel…………………………………………………………………… 0 to 90 Degrees

Rapid Advance Stroke………………………………………………………………….. 2″

Manual Infeed Per Revolution………………………………………………………… 0.050″

Auto Pickfeed Rate………………………………………………………… 0.0002″ to .0016″

Wheel Diameter………………………………………………………………. 12″ x 1-5/8″ x 5″

Wheelhead Drive…………………………………………………………………………. 4 H.P.

Headstock Drive………………………………………………………………………….. 1 H.P.

Hydraulic Pump…………………………………………………………………………… 1 H.P.

Internal Grinding Motor………………………………………………………………….. 1 H.P.

Approximate Shipping Weight…………………………………………………… 5.500 Lbs.



FEATURES & EQUIPMENT:

Internal Grinding Attachment

Backrest

Traverse Grinding-Semi Automatic Using Pick Feed

Plunge w/Automatic Dual Rate Infeed                        Table Dresser

Coolant Pump & Tank                                                            Manuals

Steady Rest



CONDITION: VERY GOOD TO EXCELLENT

PHOTOS ARE AVAILABLE UPON  YOUR REQUEST AND THIS MACHINE CAN BE INSPECTED UNDER POWER AT YOUR CONVENIENCE.

Stock # 2173
