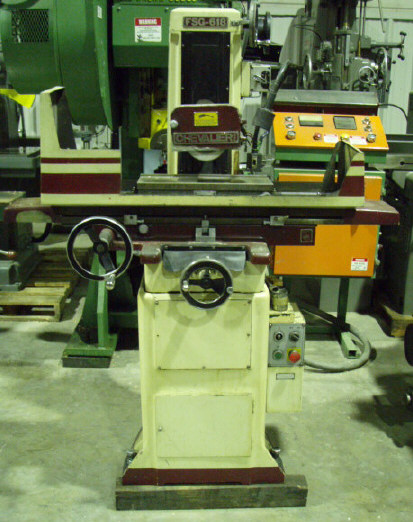

Chevalier 6” X 18” Manual Surface Grinder, Model FSG-618M,
New 1990’s, S/N A277A049
SPECIFICATIONS:
Max Grinding Length…………………………………………………………………………. 18”
Max Grinding Width…………………………………………………………………………….. 6”
Max Distance Table to Spindle Centerline……………………………………………….. 18”
Max Grinding Wheel…………………………………………………… 8” x ¾” x 1 ¼ Bore
Grinding Wheel Speed……………………………………………………………. 3450 RPM
Grinding Wheel Motor……………………………………………………………….. 1hp, 3ph
Wheelhead Handwheel Per Revolution……………………………………………….. 0.05”
Wheelhead Handwheel Per Graduation……………………………………………… 0.0005
Approximate Weight…………………………………………………………………. 1500 lbs
EQUIPPED WITH:
6” x 18” Magnetic Chuck
Splash Guards
Coolant System
Condition- Good
Stk#2512
