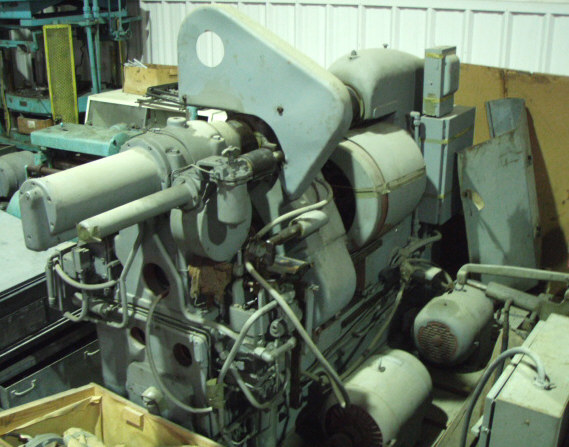

Bryant No. 24-26″ Hydraulic Internal Grinder,

S/N M10036, New in 1950’S

SPECIFICATIONS:

Total Chuck Swing Without Guard………………………………………………………… 26″

Maximum Traverse Stroke…………………………………………………………………. 19″

Maximum Grinding Length………………………………………………………………….. 16″

RPM of Work Spindle…………………………………………………. 70, 90, 135, 180 RPM

Wheel Slide Traverse Speed………………………………………………. To 25′ Per Minute

Motor:

Wheel Drive…………………………………………………………… 10 HP, 1800 RPM

Work Drive……………………………………………………… 1-3 HP, Multispeed AC

Oil Pump………………………………………………………………… 2 HP, 1200 RPM

Oil Reservoir Capacity……………………………………………………………….. 16 Gallons

Weight of Machine……………………… (APPROXIMATE)…………………… 12,000 Lbs.

Floor Space Required without Coolant Tank……………………………………… 11′ x 5′



FEATURES & ACCESSORIES:

Grinding Wheel Spindle

Splash Guards

Swing Down Dresser



CONDITION:  Machine is from long term Government Storage, and is in Very Good to Excellent Condition. Still mounted on Government Skids and bathed in Cosmolene.

Has had very limited use.

Stk #2016
