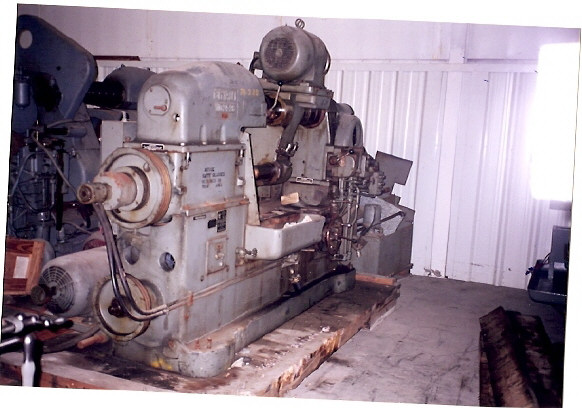

Bryant No. 24-26″ Hydraulic Internal Grinder,
S/N M-9914, New in 1950’S
SPECIFICATIONS:
Total Chuck Swing Without Guard…………………………………………………………. 26″
Maximum Traverse Stroke…………………………………………………………………….. 19″
Maximum Grinding Length…………………………………………………………………… 16″
RPM of Work Spindle…………………………………………………. 70, 90, 135, 180 RPM
Wheel Slide Traverse Speed………………………………………………. To 25′ Per Minute
Motor:
Wheel Drive…………………………………………………………… 10 HP, 1800 RPM
Work Drive…………………………………………………….. 1-3 HP, Multispeed AC
Oil Pump………………………………………………………………… 2 HP, 1200 RPM
Oil Reservoir Capacity………………………………………………………………… 16 Gallons
Weight of Machine………………… (Approximate)……………………………. 12,000 Lbs.
Floor Space Required without Coolant Tank………………………………………. 11′ x 5′
FEATURES & ACCESSORIES:
Grinding Wheel Spindle
Splash Guards
Swing Down Dresser
Coolant System
CONDITION: Machine is from long term Government Storage, and is in Very Good to Excellent Condition. Still mounted on Government skids and bathed in Cosmolene.
Has had very limited use.
Stk # 2184
