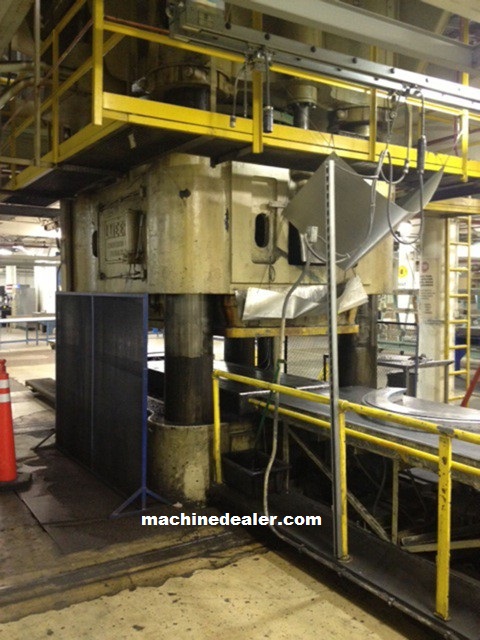

One Preowned 5000 Ton Lake Erie Downacting Hydraulic Press,

MODEL: 4-Post

SPECIFICATIONS:

Capacity: ……………………………………………………………………. 5000 Tons
Stroke: ………………………………………………………………………. 48”
Daylight Opening: …………………………………………………………. 60”
Platen Area: ………………………………………………………………… 112” x 112”
Bolster Area: ……………………………………………………………….. 112”LR x 48”FB
Distance Between Posts: ……………………………………………….. 78”LR x 64”FB
Diameter Of Ram: ………………………………………………………… 67”
Diameter of Posts: ……………………………………………………….. 18”

Equipped With:

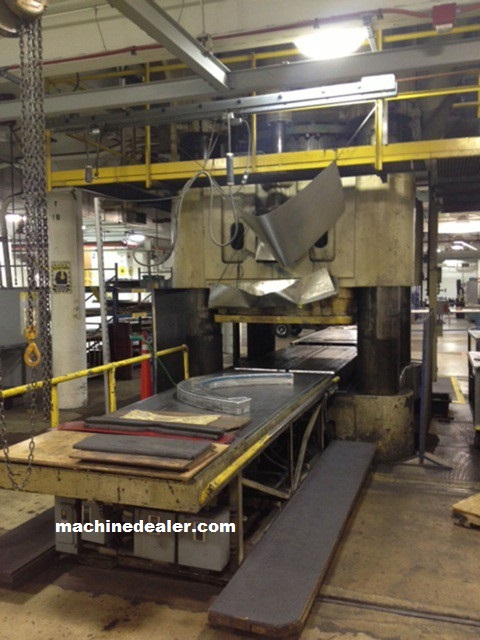

Rubber Pad Fluid Forming Unit

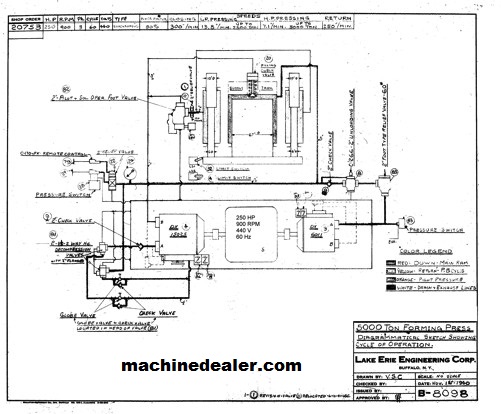

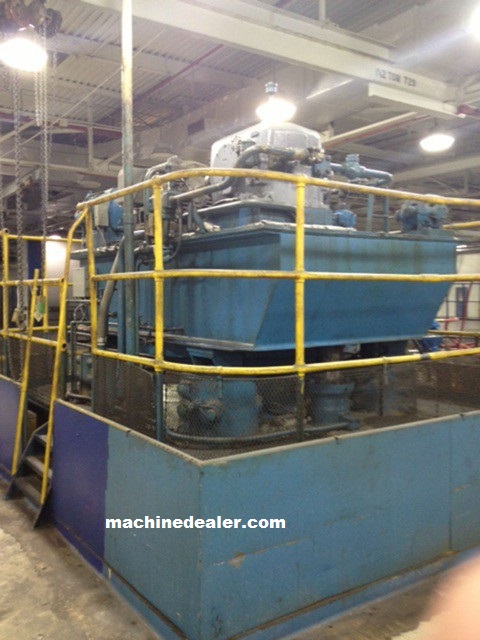

Top Mounted Hydraulic Power Unit Including:
(1) 60 HP Oilgear Hydraulic Pump #DX-6011 – 880 RPM – 1100 Rated Pressure
(1) 150 HP Oilgear Hydraulic Pump #DX-15025 – 880 RPM – 2500 Rated Pressure
250 HP Toshiba/Houston #B2508VFL480 High Efficiency Induction Drive Motor –
880 RPM – 3/60/460V (Between Pumps)
Main Cylinder Press Gauge
Electrics with On/Off/Semi/Inch/Return/Down Controls

Overall Dimensions: 128”LR x 111”FB @ Feet
Overall Height: 374”
Height Above the Floor: 285” (with bed at floor level)
Approximate Weight: 476,000#

Stk#2991CU
