4500 Ton Lake Erie Forging and Heading Press

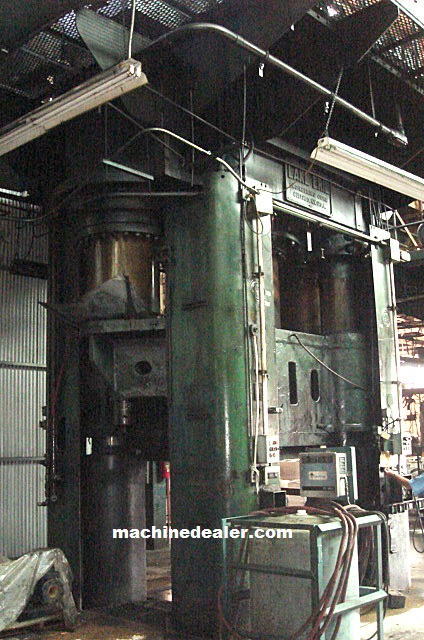

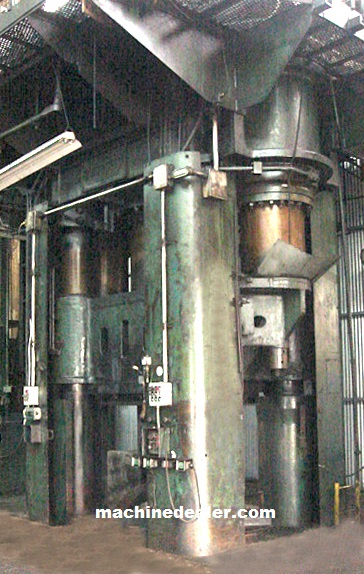

ONE PREOWNED LAKE ERIE 4,500 TON HYDRAULIC FORGING AND HEADING PRESS, DOWN ACTING, NEW in 1950’s
ONE PREOWNED LAKE ERIE 4,500 TON HYDRAULIC FORGING AND HEADING PRESS, DOWN ACTING, NEW in 1950’s
SPECIFICATIONS:
Capacity @ 2450 PSI………………………………………………….…….4,500 Ton
Daylight ……………………………………………………………………………………… 126”
Stroke ……………………………………………………… …………………………….36”
Shut Height…………………………………………………………………..………90”
Bed Size L to R, F to B………………………………………………………66” x 100”
Ram Size L to R, F to B………………………………………………………….. 66” x 75”
Distance Between Columns L to R, F to B…………………………………… 66” x 54”
Main Ram Diameter (2500 Ton)…………………………………………………….. 51”
Side Rams Diameter (2) (1000 Ton each)………………………………………… 30 ½”
Approximate Weight…………………………………………………….. 1,100,000 lbs
Condition: Good. New Ram, No hydraulics or electrical controls
Being offered As Inspected, disassembled, prepared for shipping, loaded to truck, without hydraulics, electronics or controls.
Stk#2870CTF
