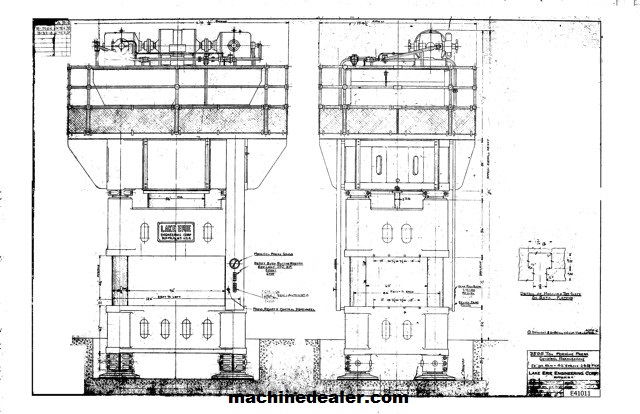

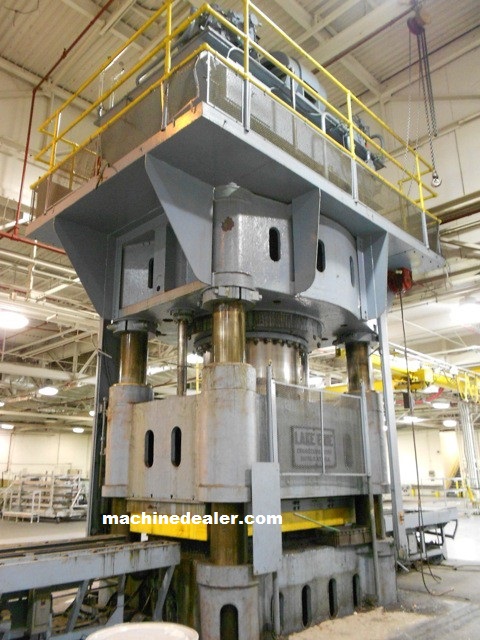

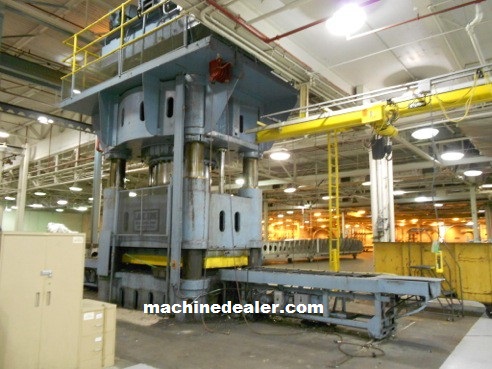

One Preowned 3500 Ton Lake Erie 4-Post Downacting Hydraulic Press, Built in 1951, S/N 3349

SPECIFICATIONS:

Capacity: ……………………………………………………………….. 3500 Tons
Stroke: ………………………………………………………………….. 30”
Daylight: ………………………………………………………………… 54
Platen Area: ……………………………………………………………. 120” L-R x 96” F-B
Distance Between Posts: …………………………………………… 96”L-R x 60”F-B
Speeds: …………………………………………………………………. 340 IPM Approach
………………………………………………………………… 20 IPM Forming
………………………………………………………………… 285 IPM Return
Main Cylinder: …………………………………………………………. 56” Diameter
(2) Pull Back Cylinders: ……………………………………………… 8” Diameter
Tie Rods: ……………………………………………………………….. 16” Diameter
Floor to top of bed: …………………………………………………… 31”

Equipped With:

Inch/Auto Mode Selector Switch
Tonnage Gage

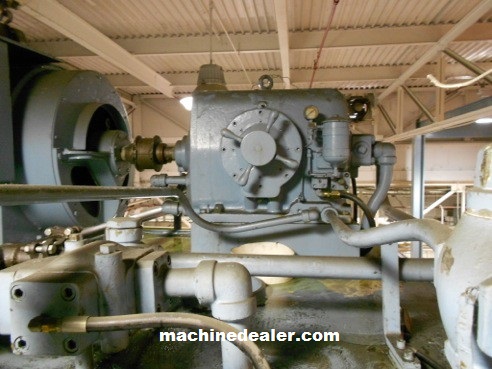

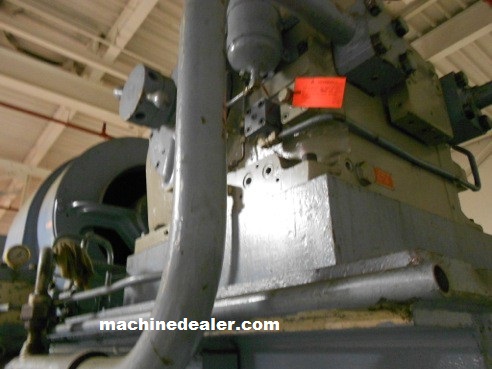

Top Mounted Hydraulic System

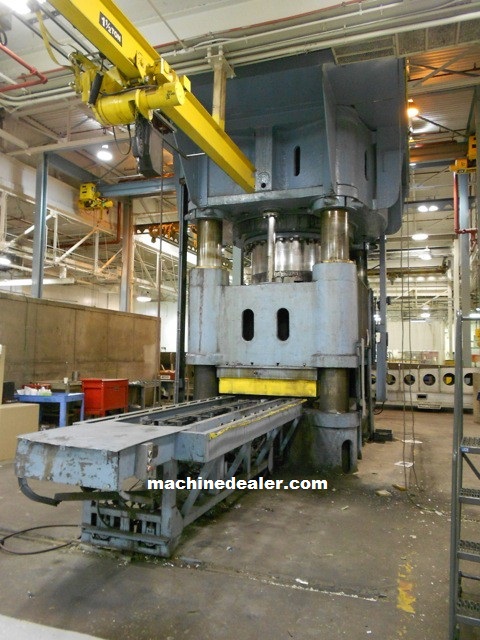

(2) Shuttle Tables: 128” Long x 45” Wide
Rubber Pad Fluid Form Unit

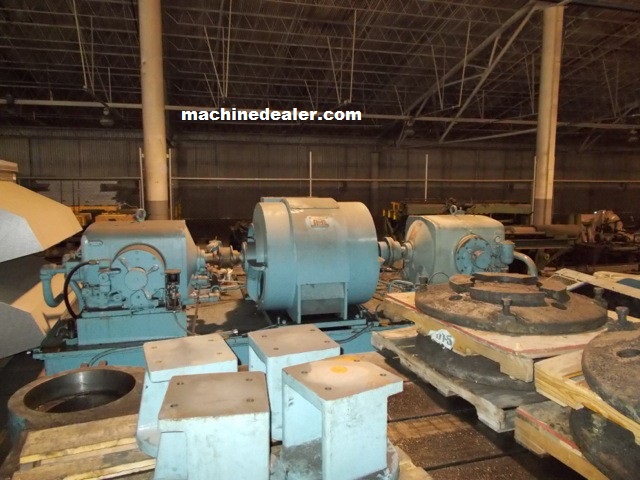

Press is offered dismantled for immediate shipment from Texas location.
Photos were taken when Press was last in service.

Stk#2989CU
