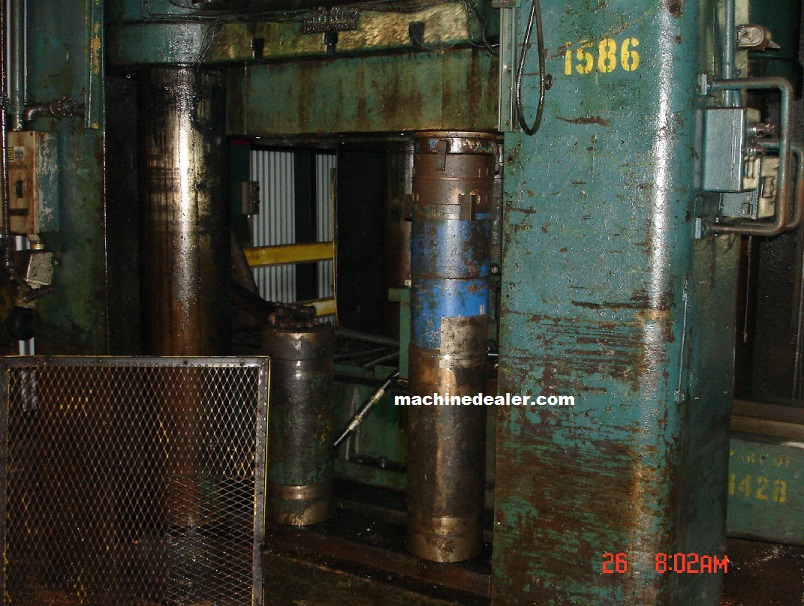

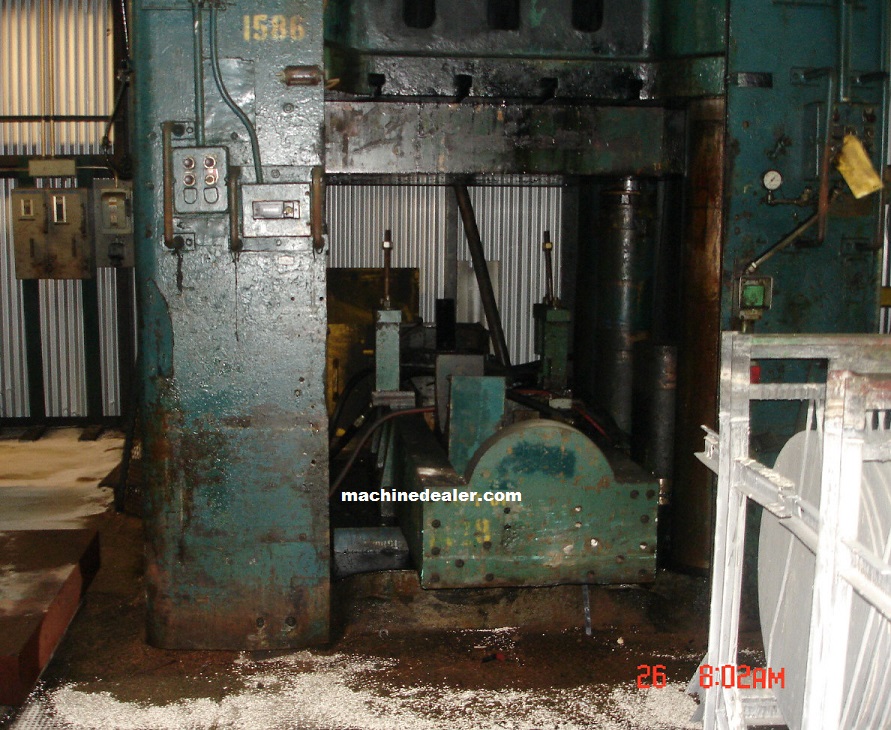

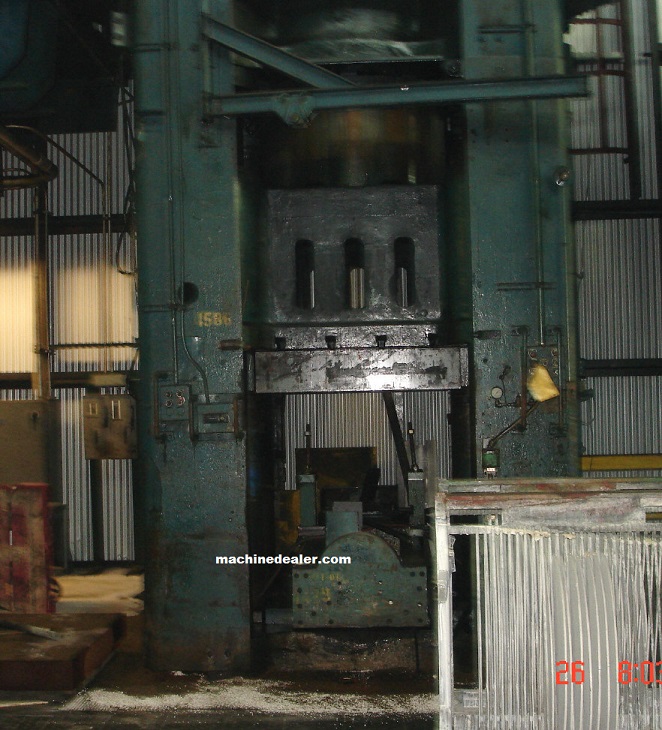

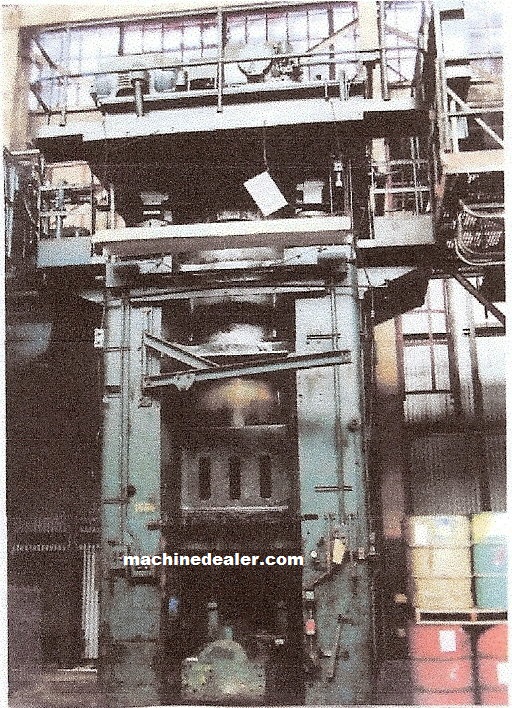

3000 Ton Lake Erie Forging/Heading Press
ONE PREOWNED LAKE ERIE 3,000 TON HYDRAULIC FORGING AND HEADING PRESS, DOWN ACTING, S/N 1844
ONE PREOWNED LAKE ERIE 3,000 TON HYDRAULIC FORGING AND HEADING PRESS, DOWN ACTING, S/N 1844
SPECIFICATIONS:
Capacity @ 3000 PSI………………………………………………….…….3,000 Ton
Daylight ……………………………………………………………………………………… 82”
Stroke ……………………………………………………… …………………………….42”
Shut Height…………………………………………………………………..………40”
Approach Speed…………………………………………………….…………..400 IPM
Press Speed @ 3,000 Tons……………………………………………………..25 IPM
Ram Return Speed…………………………………………………………………… 486 IPM
Bed Size L to R………………………………………………………………………..53”
Bed Size F to B………………………………………………………………………..68”
Main Ram Diameter……………………………………………………………………. 50 ½”
Bed Hole Area……………………………………………………………………….. 36” x 36”

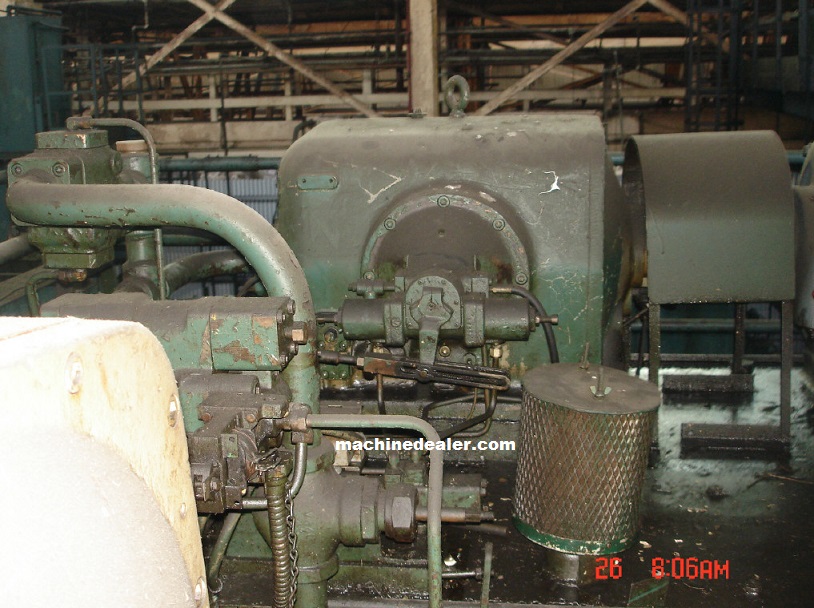

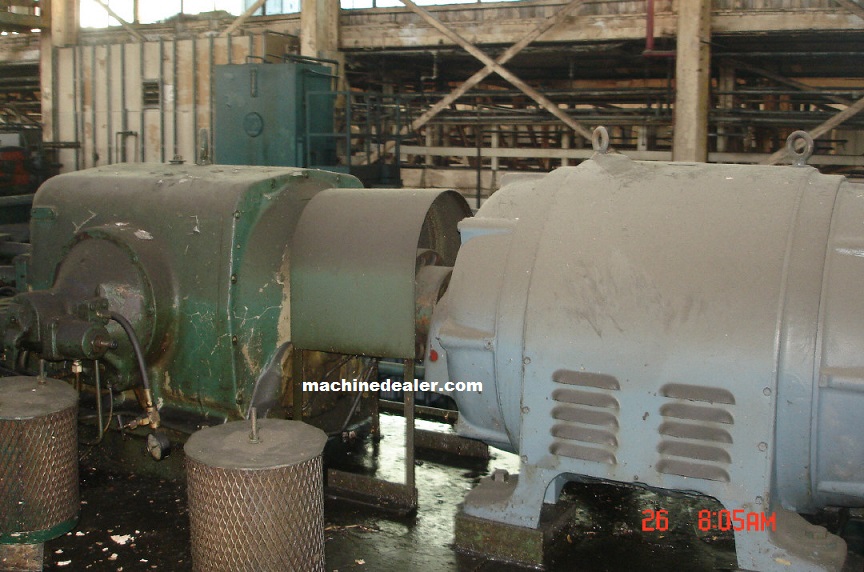

Motors…………………………………………………………… (1) 150 HP, 1200 RPM
………………………………………………………….. (1) 40 HP, 975 RPM

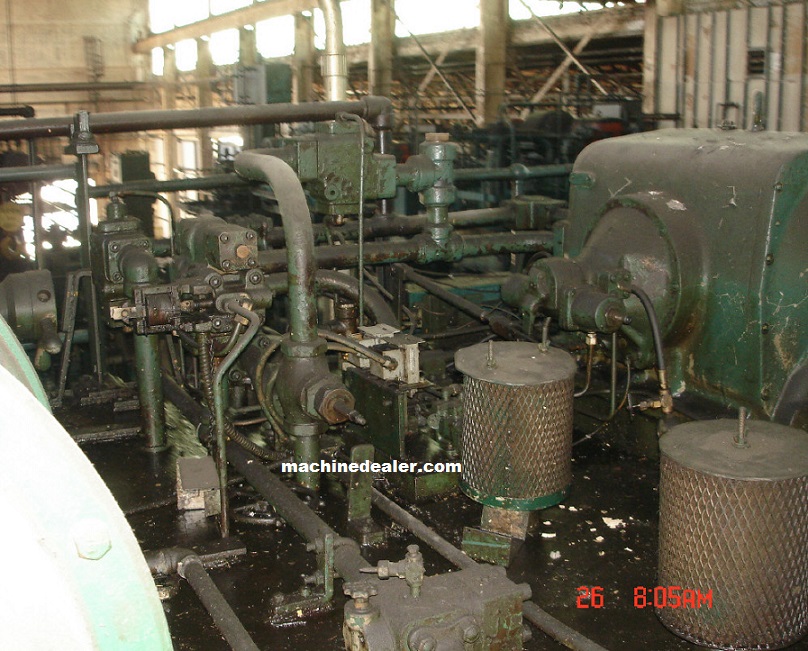

Pumps…………………………………………………………………………………… Oilgear
Approximate Weight……………………………………………………………… 325,000 lbs
Condition: Very Good-Very Well Maintained Press
Being offered As Inspected, disassembled, prepared for shipping, loaded to truck.
Stk#2480c
