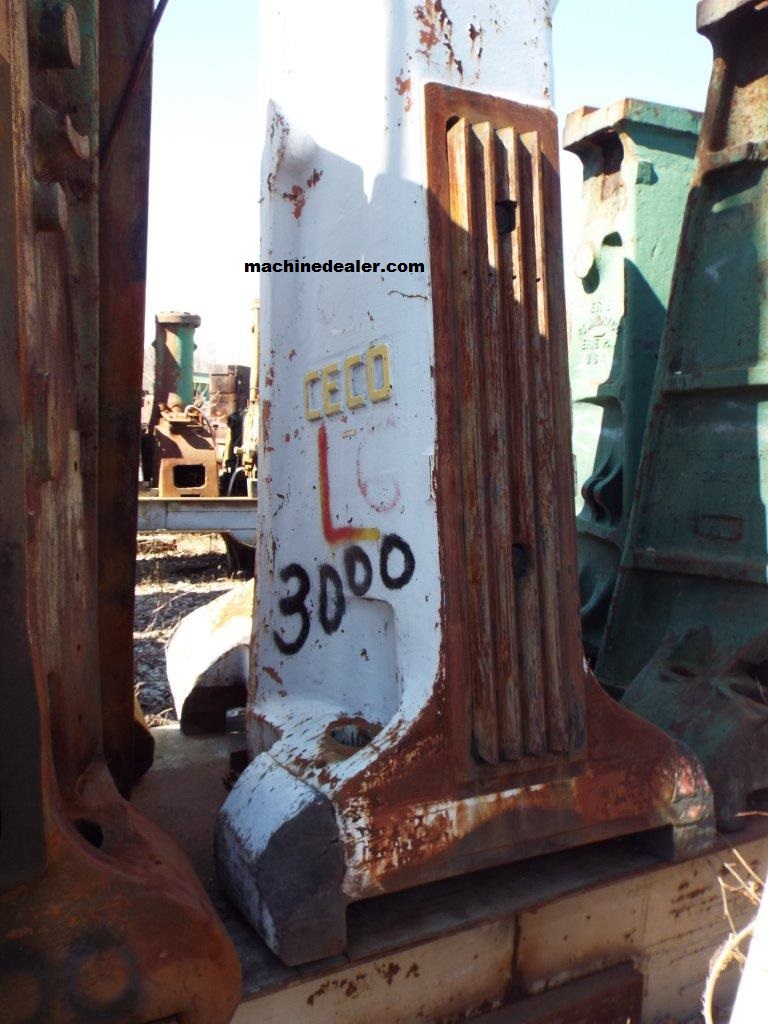

ONE PREOWNED CHAMBERSBURG 3000 POUND CECO-DROP HEAVY DUTY 4V GRAVITY DROP HAMMER
SPECIFICATIONS:

Rated Size ……………………………….3000 lbs
Ram Stroke ……………………………..49”
Distance Between Guides …………..23”
Ram F-B ……………………………………23”
Anvil Cap F-B ……………………………30”
Closed Die Height/Max-Min ………17”/10”
Minimum Die Bearing Area ……….185 sq in.
Minimum Striking Area …………….48 sq in.
Air Consumption ………………………425 SCFM
Inlet and Exhaust ………………………3”
Floor Space …………………………..46” x 100”
Overall Height Above Floor …….207”
LOCATION: Michigan

CONDITION: Good to very good. Dismantled and in storage.

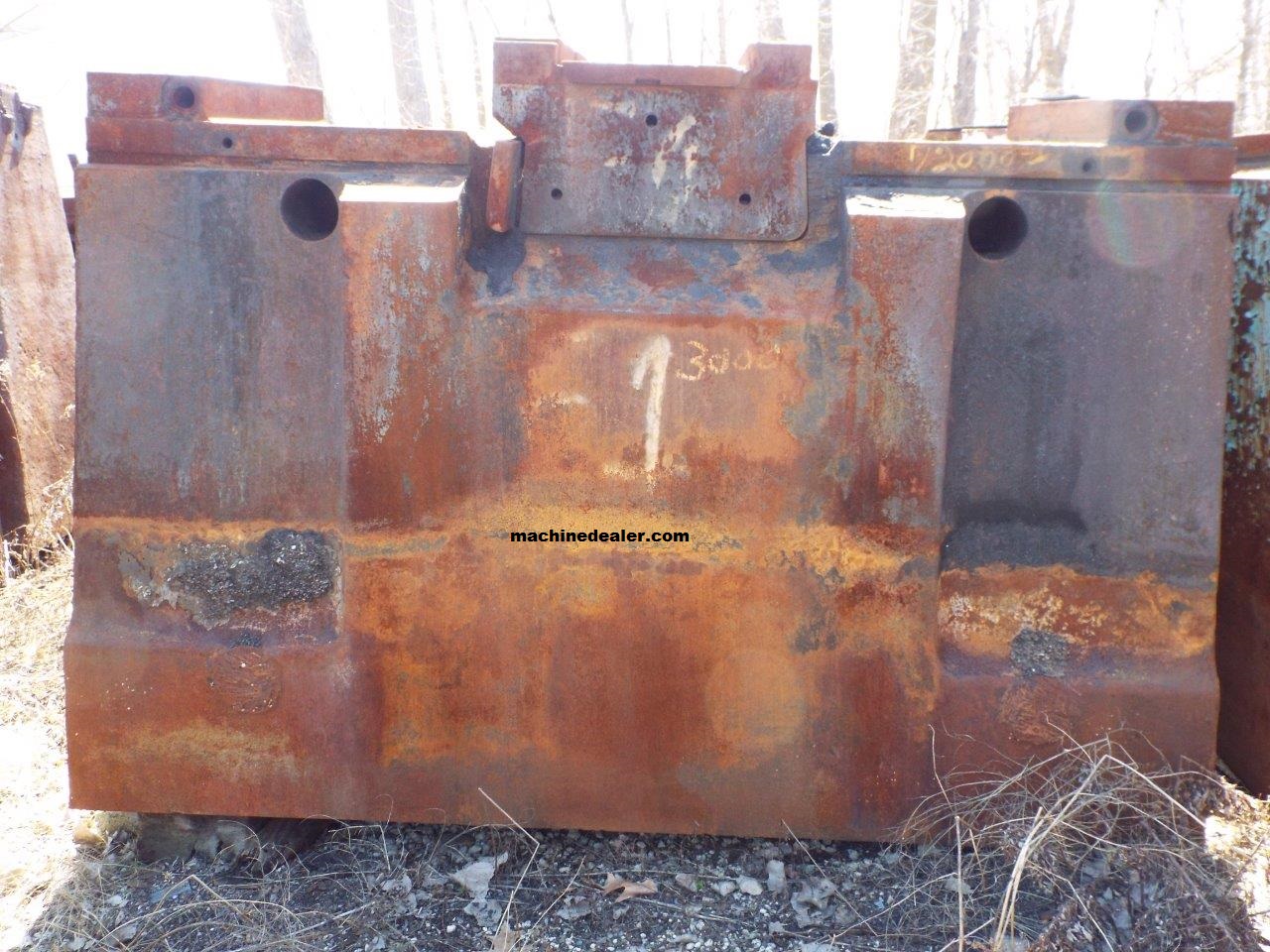

This is a heavy duty 3000 lbs plus hammer with 4V guides. There are 3 hammers available. One has an extra-large base with larger sow block width. The other two have a base bigger than most 3000 lb hammers. All bases are steel. Hammer was designed for closed die forging of hand tools.
3 AVAILABLE
Stk#2808CE
