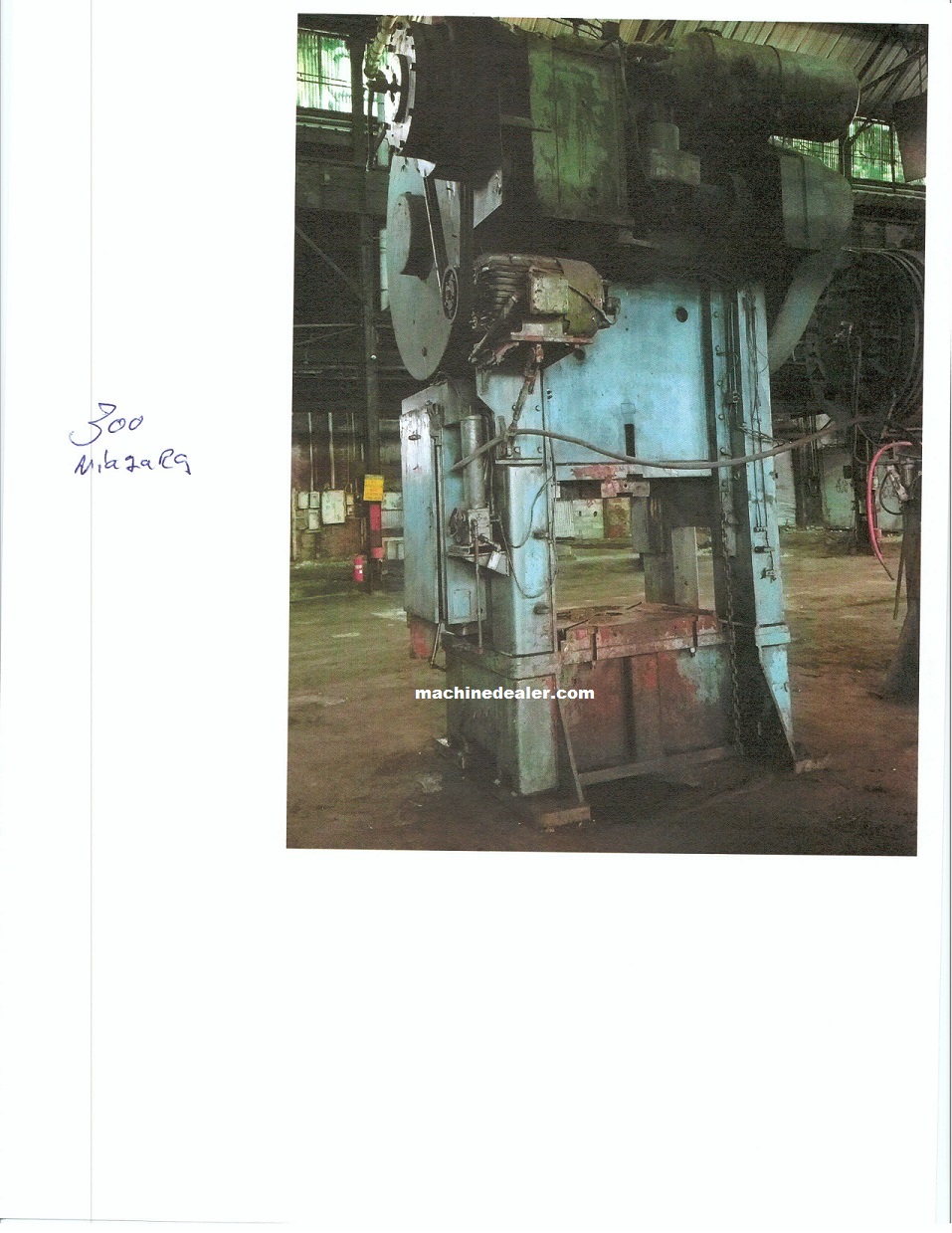

300 Ton Niagara SS Press
ONE PREOWNED 300 TON NIAGARA STRAIGHT SIDE TRIM PRESS, MODEL SCI-300-48-32, S/N 39498
ONE PREOWNED 300 TON NIAGARA STRAIGHT SIDE TRIM PRESS, MODEL SCI-300-48-32, S/N 39498
SPECIFICATIONS:
Press Capacity ½” from bottom stroke…………………………………… 300 Tons
Strokes per minute…………………………………………………………….. 20
Length of stroke………………………………………………………………… 12”
Ram adjustment………………………………………………………………… 10”
Shut height on bed (stroke down, adj. up)……………………………….. 30”
Area of bolster, R-L x F-B…………………………………………………… 48” x 42”
Opening in Uprights, F-B x T-B…………………………………………….. 22” x 24”
Main motor HP………………………………………………………………….. 30
Main motor RPM……………………………………………………………….. 1200
Ram adjusting motor HP……………………………………………………… 3
Ram adjusting motor RPM…………………………………………………… 1800
Weight of press, approximate………………………………………………. lbs
Dimensions, approximate…………………………………….. 10’ LR x 8’9” FB x 17’ H
CONDITION: Good to very good.
LOCATION: Michigan
Stk#2979CE
