ONE PREOWNED CHAMBERSBURG 2500 POUND CECO-DROP HEAVY DUTY 4V GRAVITY DROP HAMMER
SPECIFICATIONS:

Rated Size ……………………………………2500 lbs
Ram Stroke ………………………………….47”
Distance Between Guides ……………..20 ½”
Ram F-B ………………………………………21”
Anvil Cap F-B ……………………………….27”
Closed Die Height/Max-Min …………..16”/9”
Minimum Die Bearing Area ……………129 sq in.
Minimum Striking Area ………………..38 sq in.
Air Consumption …………………………360 SCFM
Inlet and Exhaust ……………………………3”
Floor Space …………………………………45” x 95”
Overall Height Above Floor……………(APPX) 200”
LOCATION: Michigan

CONDITION: Good to very good. Dismantled and in storage.

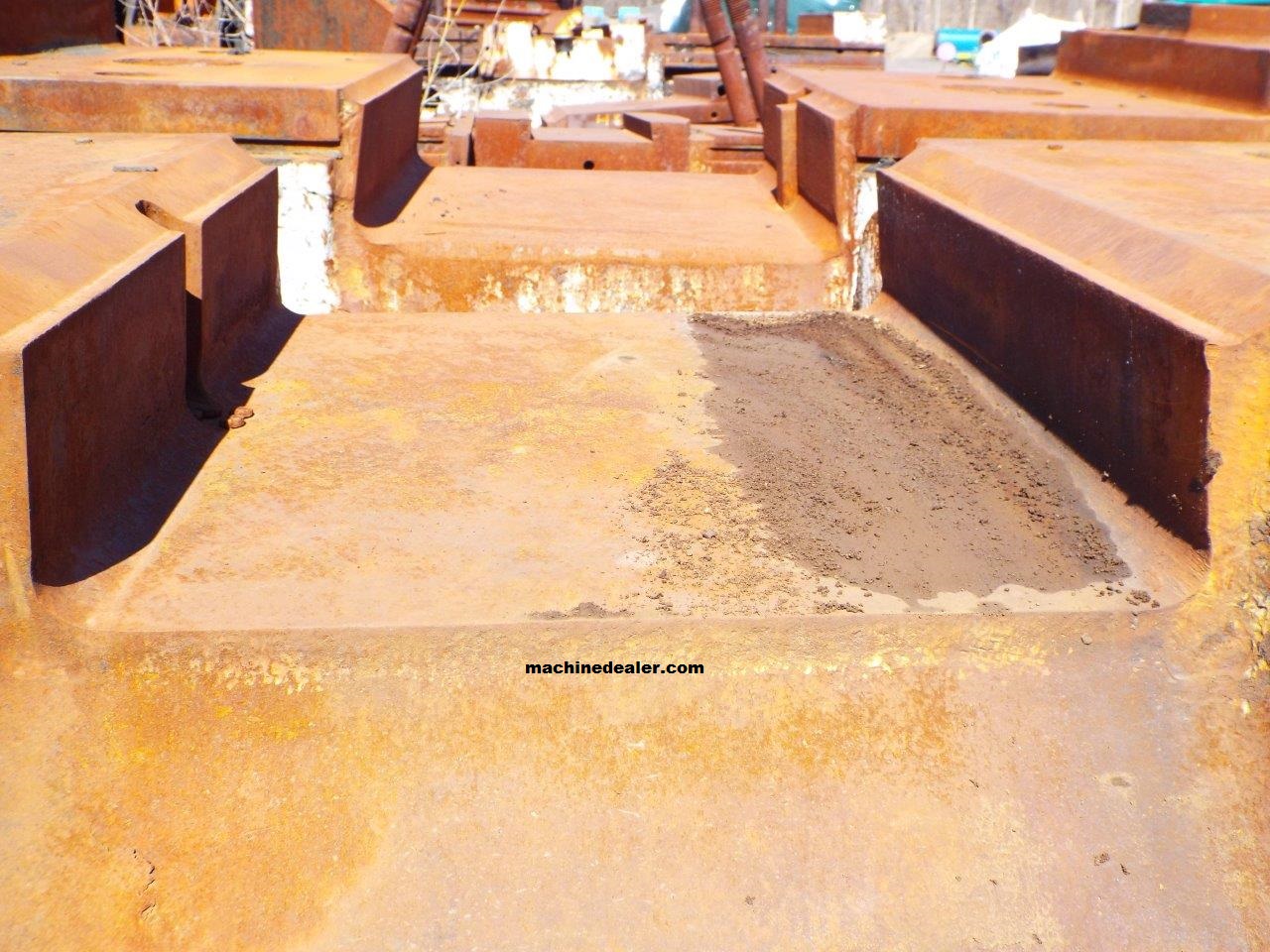

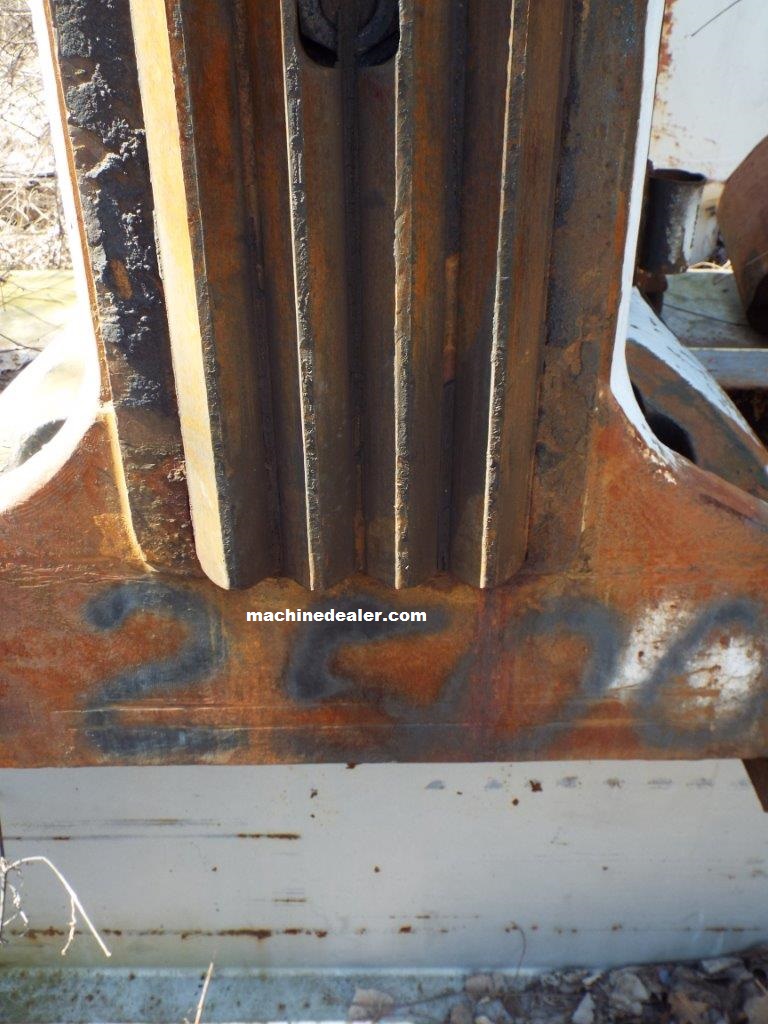

This is a heavy duty 2500 lbs plus hammer with 4V guides. The base is steel and the columns are cecoloy. This hammer was last used to close die forge hand tools. The base, columns and ram are heavier on this then on typical 2500 lb hammers.
3 AVAILABLE
Stk#2807CE
