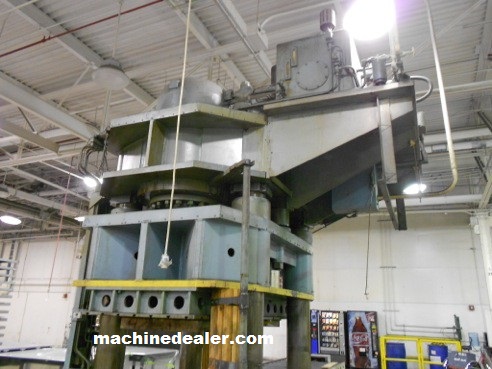

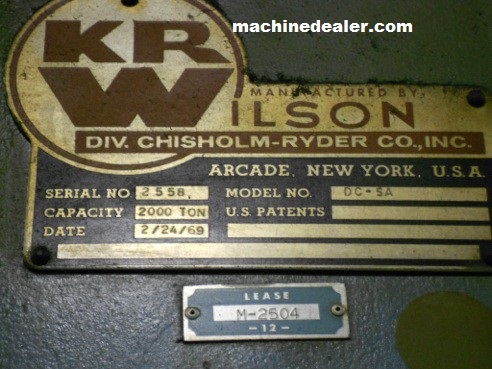

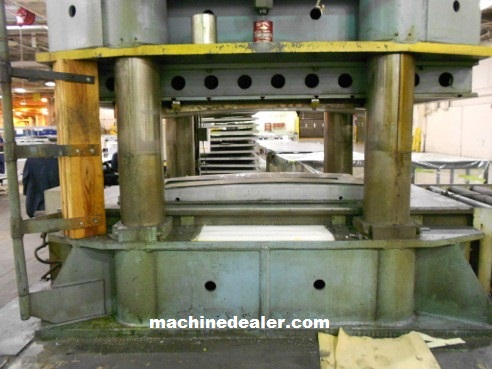

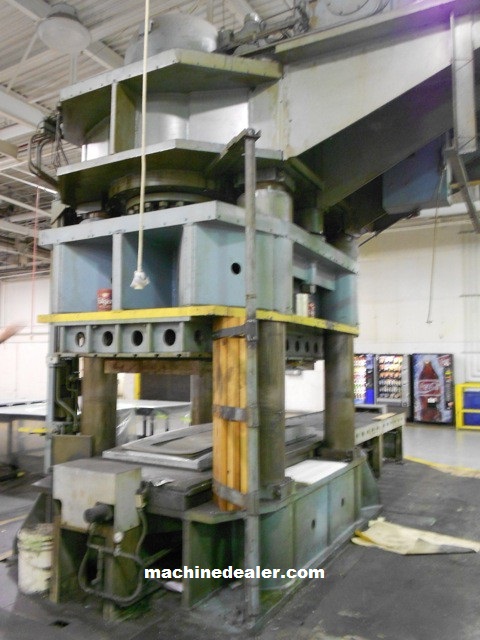

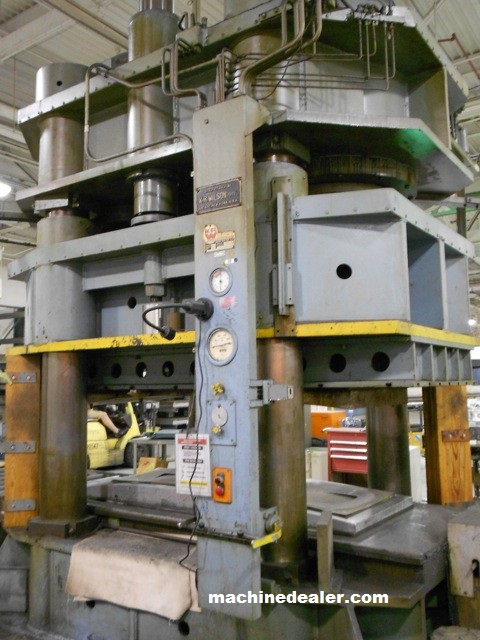

One Preowned 2000 K. R. Wilson Downacting Hydraulic Press, MODEL: #DC-SA 4-Post, YEAR: 1970, S/N: 2558

SPECIFICATIONS:

Capacity: ……………………………………………………………….. 2000 Tons
Stroke: ………………………………………………………………….. 36”
Daylight Opening: …………………………………………………….. 48”
Platen Area: ……………………………………………………………. 120” LR x 48” FB
Distance Between Posts: …………………………………………… 54” LR x 50” FB

Speeds: …………………………. 60 IPM Rapid Close / 2 IPM Press / 52 IPM Return

Equipped With:

40 HP Motor
2000 PSI W.P.
(2) Main Cylinders: 24” Diameter Each
(2) Pullback Cylinders: 8” Diameter Each
(4) Tie Rods: 12” Diameter
Distance Floor to Bed: 24”
Back Mounted Hydraulics
T Slotted Ram Plate: 10” Thick
Electrics/Controls
Shuttle Table: 120” Long x 48” Wide
Floor Standing Design, No Pit Required !!!!!

Approximate Overall Dimensions: 11’ L-R x 12’ F-B x 15’ Above Floor
Approximate Overall Weight: 138,000 Lbs

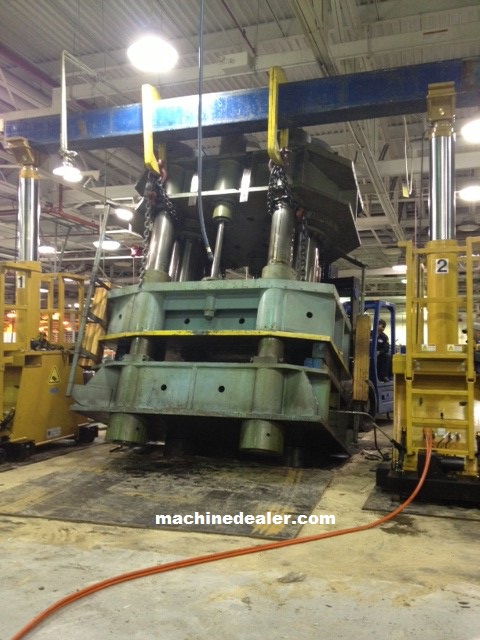

Press is offered dismantled for immediate shipment from Texas location. Photos were taken when Press was last in service

Stk#2990CU
