36″ Rockford Slotter
Rockford 36" Vertical Hydraulic Slotter with 42" power rotary table. Stk#2699C
ONE PREOWNED 36” ROCKFORD HY-DRAULIC VERTICAL SLOTTER,
42” ROTARY TABLE
SPECIFICATIONS:
Table Diameter…………………………………………………………………. 42”
Removable Center…………………………………………………………….. 16”
Stroke Length, Range Min/Max…………………………………………….. 6”/36” Max
Slots to Center of Circle (Dia)……………………………………………….. 83”
Maximum Distance Under Adjustable Ram Guide…………………….. 40”
Maximum Distance Under Ram Housing…………………………………. 39”
Ram Guide Vertical Adjustment……………………………………………. 16”

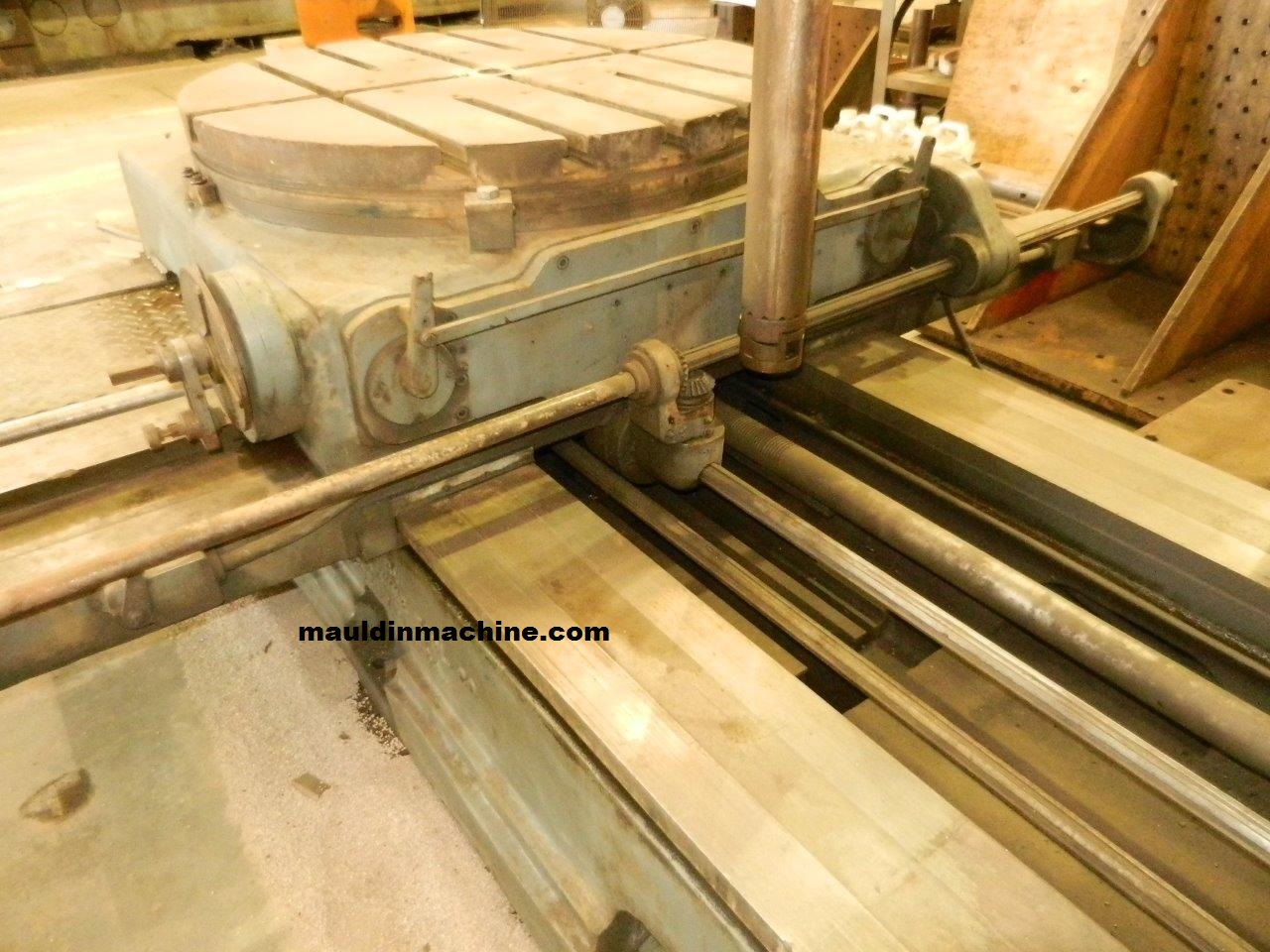

Cross Table Travel…………………………………………………………….. 36”
Longitudinal Table Travel…………………………………………………….. 42”
Cutting speed, Infinitely Variable…………………………………………… 0-80 fpm
Range of Ram Return Speeds……………………………………………… 0-150 fpm
Rotary @ 16” diameter……………………………………… 0.001” to 0.140” per stroke
Maximum Cutting Pressure………………………………………………….. 10,000 lbs
Maximum Forward Inclination of Tilting Ram Guide…………………… 10 degrees
Distance, Floor to Table Top………………………………………………… 37”
Maximum Height w/Adjustable Up…………………………………………. 15’8”
Floor Space (approx.)…………………………………………………………. 8’ x 16’
Weight (approx.)……………………………………………………………….. 37,000 lbs

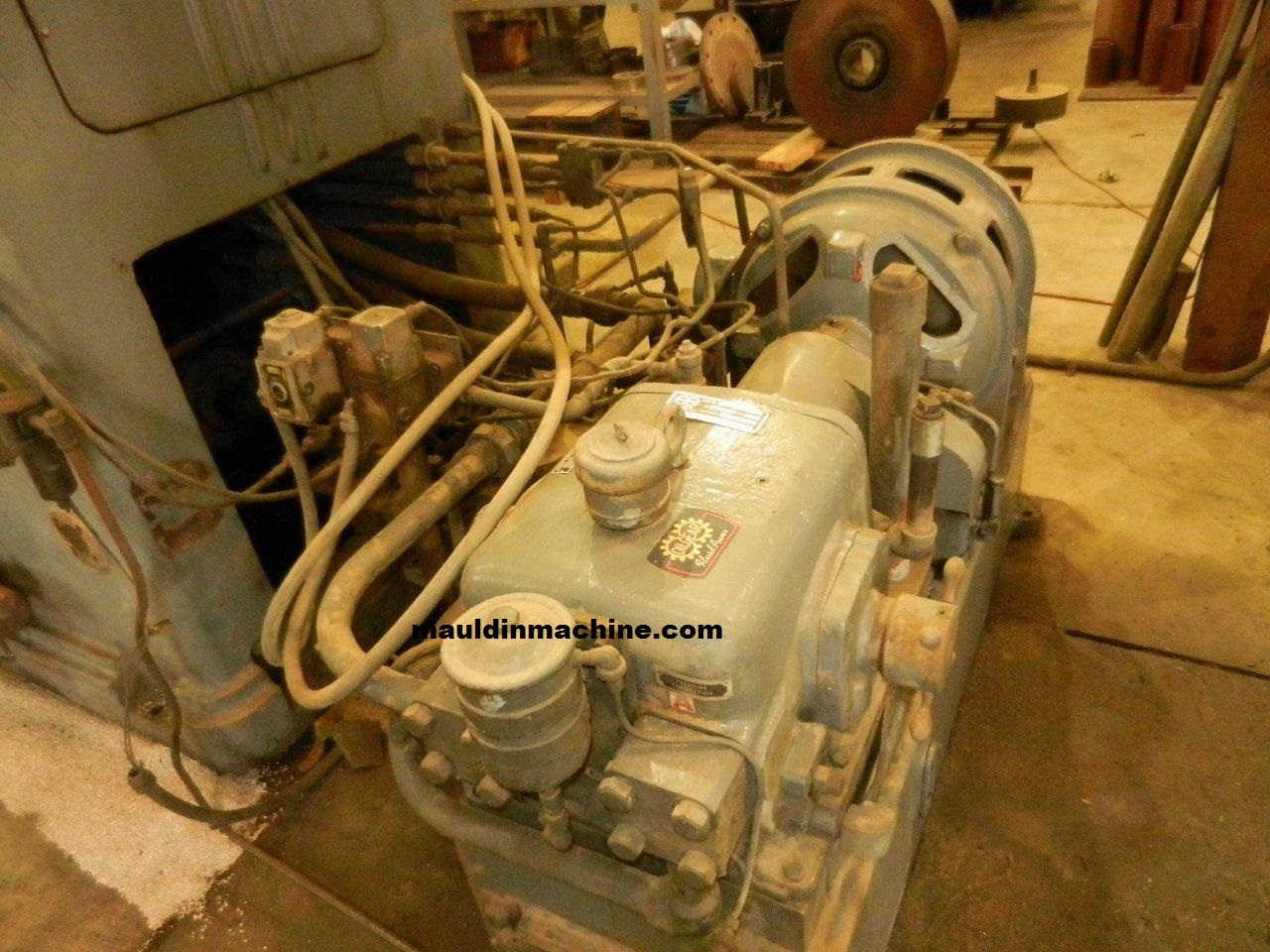

Hydraulic Motor…………………………………………………………………. 20 HP
EQUIPPED WITH:

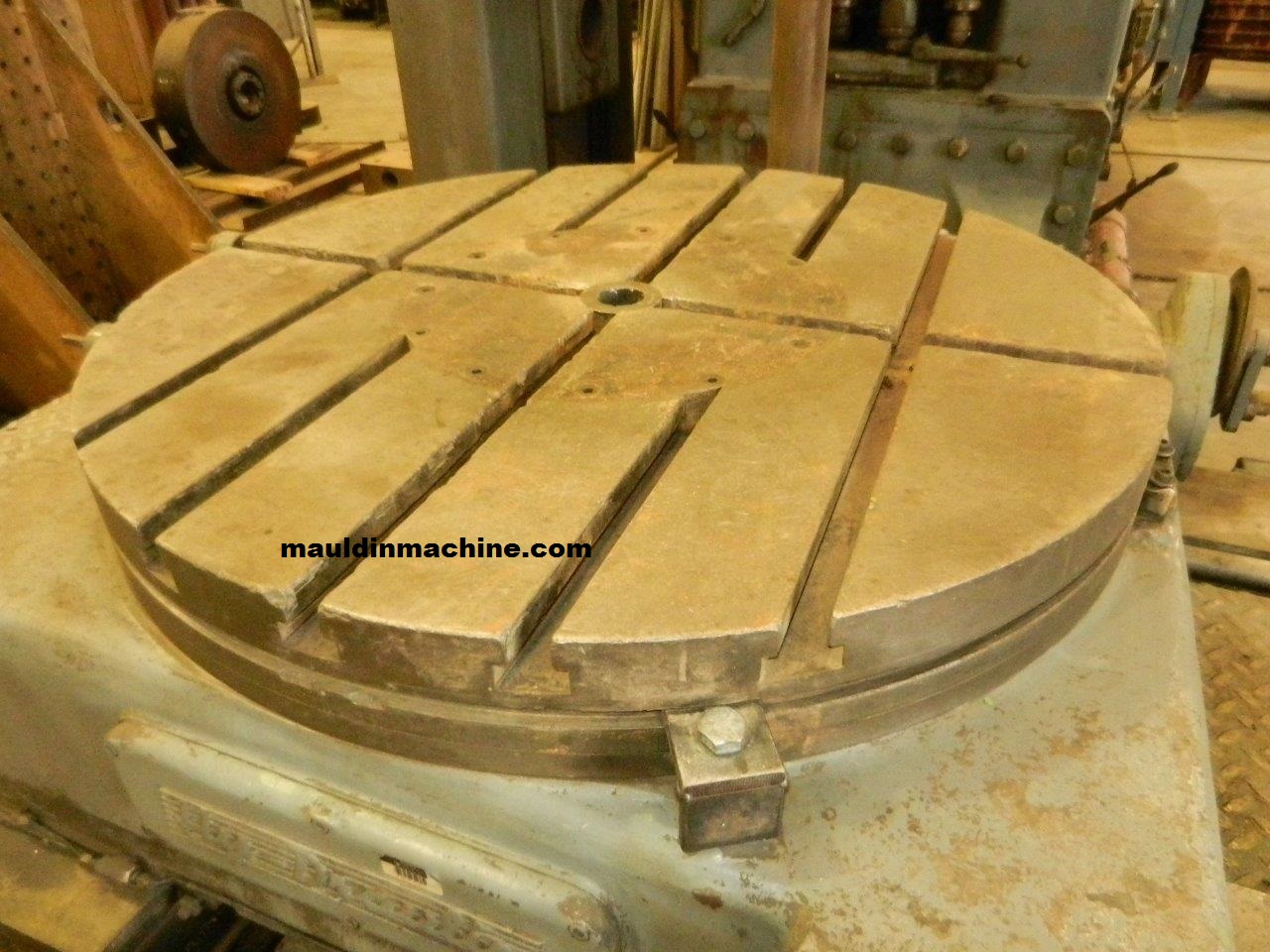

42” Indexing Rotary Table
Tilting Ram Guide
Pendent Control
One Shot Lube
LOCATION: Louisiana
Stk#2699C
